Vado Zoo Single Lever Concealed Shower Valve

The Single Lever Concealed Shower Valve has been designed and manufactured by Vados Zoo Range. Compatible with the 0.2 bar pressure system, this shower valve has a sleek and superb design that looks elegant, stylish and glamorous. It Features knob-like single lever control placed over a round backplate and includes a ceramic cartridge. The entire ensemble is plated in chrome polish. Environmentally friendly and skillfully designed, this shower valve will be the focal point of your . This shower valve is vouched for 12 long years from Vado.

• Available With or Without a diverter.
• It comes in a chrome finish.
• Features single lever control.
• Includes ceramic cartridge.
• Minimum operating pressure: 0.2 bar LP (shower) – 1.5 bar HP (bath).
• WRAS approved.

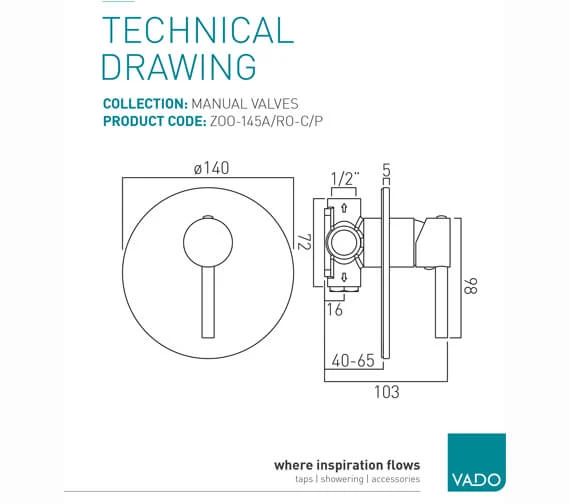

• Refer technical image for more dimensional details.
• Download the Installation Instruction PDF File from the Additional Info Section.
• Carries 15 years guarantee against any manufacturing defects.

• Features Of Without Diverter Valve :.
• 2 x 1/2 inch female inlets.
• 2 x 1/2 inch female outlets [1 blanked off].
• Minimum – maximum wall mount 40 – 65 mm.
• Diameter of shower valve: Ø 140 mm.
• Features Of With Diverter Valve :.
• 2 x 1/2 inch female inlets.
• 2 x 1/2 inch female inlets and outlet.
• Min-Max wall mount 50-70 mm.
