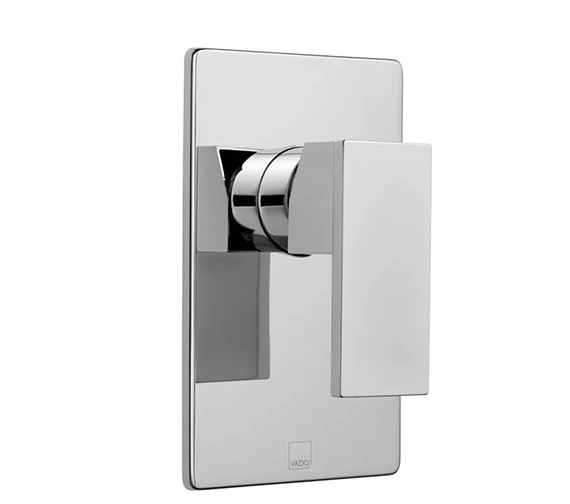

Vado Notion Chrome Concealed Shower Valve

Manufactured with an eye for aesthetics, this rectangular Concealed Wall Mounted Shower Mixer Valve from Vado Notion range is sure to enhance the appeal of your bathroom. Having a stylish yet simple design with flat lever handle to control the flow and a temperature, it complements the bathroom decor. Available as Without or With diverter, the entire unit is placed on a rectangular backplate which can be fixed to a wall. This valve is polished in a glistening chrome finish, to make a wow statement in your . Manufactured under stringent quality control measures, it comes with a 15 years guarantee from the manufacturer.

• Available Without or With a diverter.
• Wall-mounted installation.
• With the rectangular back plate.
• Ceramic cartridge CAR-K35A.
• 2 x 1/2 inch female inlets.
• 2 x 1/2 inch female outlets.
• Minimum Operating Pressure: 0.2 bar Low Pressure [shower].
• Minimum working pressure: 1.5 bar High Pressure [bath].
• Download the Installation Instruction PDF File from the Additional Info Section.

• Refer to the technical diagram for complete technical dimensions.
• Specification Of Without Diverter 1 Outlet Shower Valve:.
• Without diverter.
• Size: 100 x 160mm [Width x Height].
• Minimum – maximum wall mount: 40-65mm.
• Specification Of With Diverter 2 Outlet Shower Valve:.
• With diverter.
• Size: 100 x 185mm [Width x Height].
• Minimum – maximum wall mount: 50-70mm.
