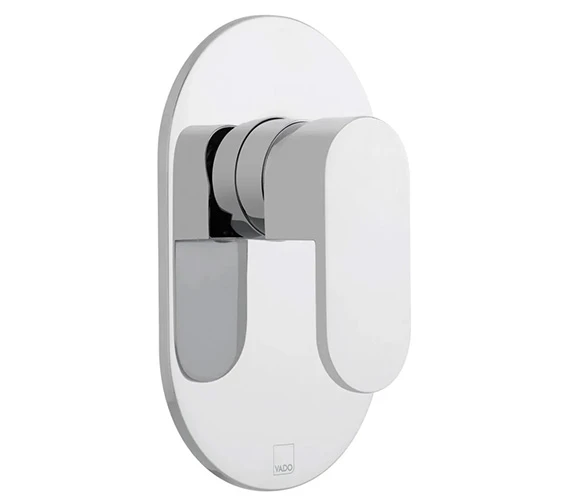

Vado Life Concealed Wall Mounted Chrome Shower Mixer Valve

The Vado Life Concealed Shower Mixer Valve is a stylish and functional addition to any bathroom. It is designed contemporarily with a beautiful oval-shaped backplate and minimalist lever design in chrome finish. This wall-mounted installation is suitable for all water systems and is available in a single or dual-outlet variant. Approved by WRAS, this product is engineered with ceramic cartridge technology to ensure smooth and reliable operation.

This valve is priced at a very reasonable rate and comes with a 15-years manufacturer’s guarantee against any manufacturing defects. Team it up with a to complete the look of your showering area.

• Available in 2 variants: 1 Outlet, 2 Outlet.
• It comes in a chrome finish.
• Wall mounted installation.
• Supplied with oval back plate.
• Ceramic cartridge CAR-K35A.
• WRAS approved.

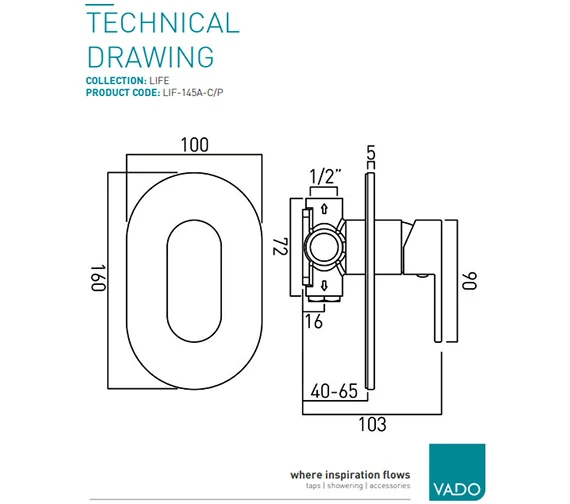

• Refer technical diagram for complete size details.
• Download the installation instruction PDF file from Additional info section.
• Guarantee: 15 years against any manufacturing defects.
• DETAILS OF 1-OUTLET SHOWER VALVE:.
• Size: 100 x 160mm [Width x Height].
• 2 x 1/2 inch female inlets.

• 2 x 1/2 inch female outlets (one is blanked off).
• min-max wall mount 40-65mm.
• Suitable for low water pressure system 0.2 bar (Shower).
• Suitable for high water pressure system 1.5 bar (Bath).
• DETAILS OF 2-OUTLET SHOWER VALVE:.
• Size: 100 x 185mm [Width x Height].
• 2 x 1/2 inch female inlets.
• 2 x 1/2 inch female outlets.
• min-max wall mount 50-70mm.
• Suitable for low water pressure system 0.2 bar (Shower).
• Suitable for high water pressure system 1.5 bar (Bath).
