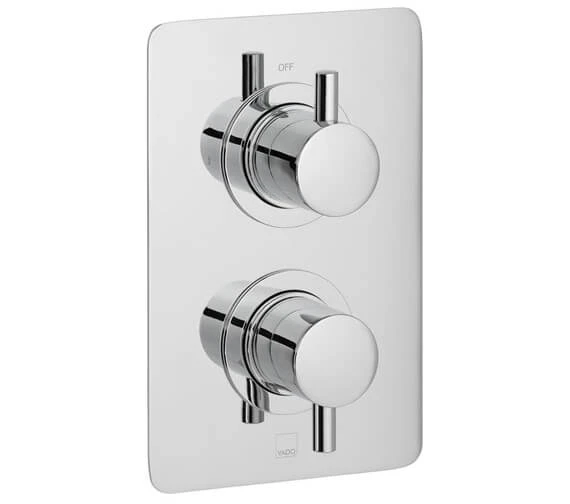

Vado Celsius Square Concealed 1 Outlet 2 Handle Thermostatic Shower Valve

The Vado Celsius Concealed Thermostatic Shower Valve is a chrome-finished, wall-mounted design that includes ¾ inch to ½ inch adaptors and a bleed valve for system flush upon installation. Requiring an optimum installation depth of 82mm, this unit also needs a minimum operating pressure of 0.2 bar in the shower section and 1 bar in the section that leads to the bath. With 1, 2 or 3 possible outlets to choose from, this product includes integrated outlets no matter which model is installed. You can get it with a rectangular or round backplate.

• Available in 3 variants.
• It comes in a chrome finish.
• Wall-mounted installation.
• With the rectangular backplate.
• Minimum operating pressure: 0.2 bar – Low Pressure [Shower], 1.0 bar – High pressure [Bath].
• Size: Width 130mm x Height 200mm.
• Thermostatic cartridge: V-001C-PLA.
• Includes 3/4 inch – 1/2 inch adaptors.
• Includes bleed valve for system flush on installation.
• Minimum-Maximum wall mount: 70-95mm.
• Optimum installation depth: 82mm.
• Studfast concealed shower valve mounting brackets [See Option].
• Download the Installation Instruction PDF file from the Additional Info Section.

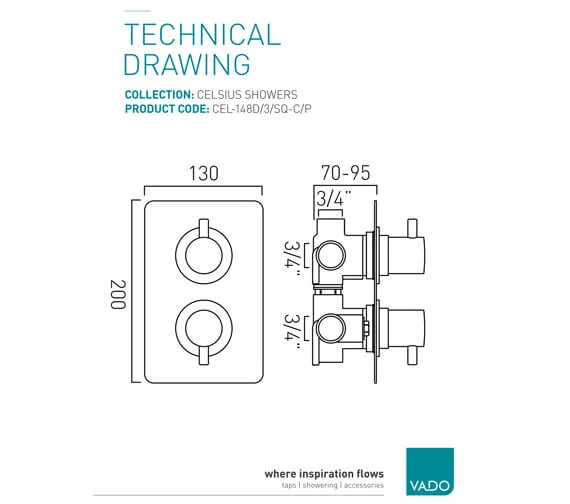

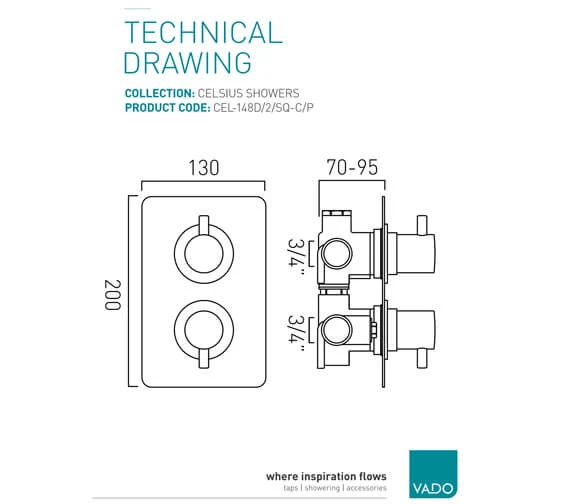

• Refer to the technical diagram for more technical details.
• Fifteen years of guarantee from the manufacturer.

• Specification For 1 Outlet:.
• 2 x 3/4 inch female inlets.
• 1 x 3/4 inch female outlet.
• Flow cartridge: C-301-RTC.
• Specification For 2 Outlets:.
• With integrated diverter.
• 2 x 3/4 inch female inlets.
• 2 x 3/4 inch female outlet.
• Diverter cartridge: FL-804-33X/3X.
• Specification For 3 Outlets:.
• With integrated diverter.
• 2 x 3/4 inch female inlets.
• 3 x 3/4 inch female outlet.
• Diverter cartridge: FL-804-33X/3X.
