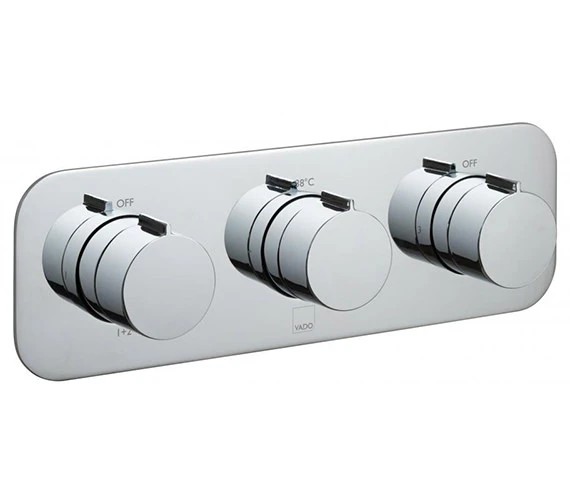

Vado Altitude Horizontal 3 Outlet Concealed Thermostatic Valve

Would you like to enjoy pleasant and exhilarating showering sessions and also feel safe and satisfied? Then you must consider installing the Vado Tablet Altitude 3 Outlet Thermostatic Valve. The chrome finish valve comes with a unique all-flow function – delivering water to either outlet independently or all outlets simultaneously. Its inbuilt thermostatic cartridge provides you with appropriate water temperature and flows to prevent the risk of scalding. Limescale build-up resistant, it is easy to maintain and works without hindrance in minimum water pressure of 0.2 bar. Safe and sturdy, it is backed with a 15-year guarantee, from the manufacturer.

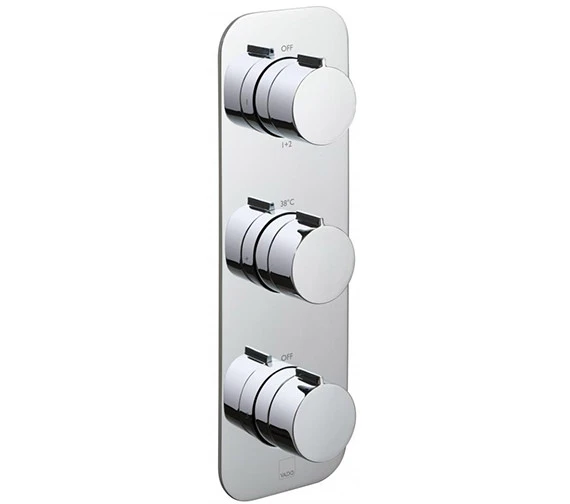

• Available in 2 variants: Horizontal, Vertical.
• Concealed three-outlet 3 handles thermostatic shower valve with ‘all-flow’ function.
• It comes in a chrome finish.
• ‘All-flow’ function – delivers water to either outlet independently or all outlets simultaneously.
• Wall-mounted installation.
• Luxury soft-turn handles.
• Exceptional safety from temperature fluctuations.
• Minimum operating pressure required: 0.2 bar [LP-Low Pressure] for shower and 1.0 bar [MP-Medium Pressure] for bath.
• Excellent flow rates, even at low pressure.
• It comes with a horizontal rectangular backplate.
• 2 x 3/4″ female inlets.
• 2 x 3/4″ female outlets.
• Includes fitting for 1/2″ and 3/4″ pipework.
• Features thermostatic and diverter cartridge.

• New polymer thermostatic cartridge that is resistant to limescale.
• New diverter cartridge that is resistant to limescale build-up and manages plumbing debris more effectively.
• Supplied with mortar guard complete with markings to aid installation and tiling.
• A flat back valve body allows for a solid, secure mount.
• Handles have multiple fitting positions to allow perfect alignment of the handle and shroud.
• 25mm fitting depth tolerance: 75 – 100mm [minimum – maximum].
• Can fit into a 50mm stud wall when using an optional studfast bracket [See Option].
• Screw-on shrouds and slide-on plates ensure a rapid and simple second fix.
• Easy-access isolation points.
• Plate size allows for a 10mm tile-cutting tolerance.
• Optimum installation depth: 88mm for standard installation.
• Fifteen years of guarantee from the manufacturer.

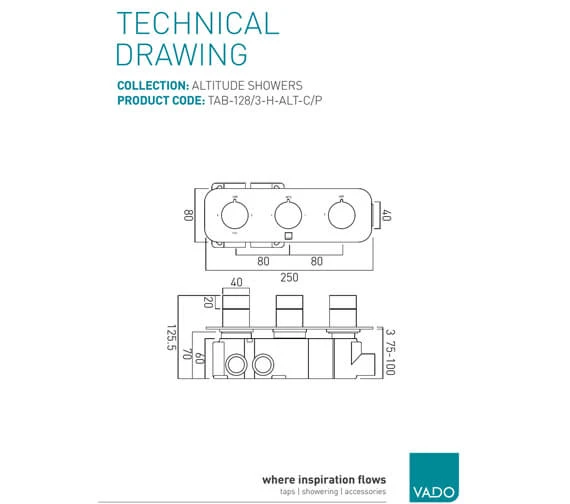

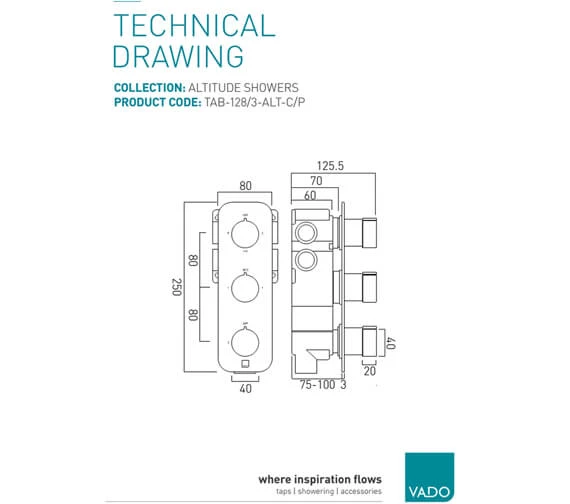

• For complete size details, please refer to the technical drawing.
• Download the Installation and Care Instruction PDF File from the Additional Info Section.
