Nuie Vibe Single Lever Basin Mixer Tap Chrome

Nuie Vibe Single Lever Basin Mixer Tap is a miniature tap is suited for use with small or corner basins and adds a distinctly modern aspect to the cloakroom or bathroom. Simple inscriptions denote hot and cold directions for the single-lever mixer, which features ceramic disc technology to ensure a smooth and even flow.

A gleaming chrome finish and a cubist form with sleek-looking contours make this piece suitable for contemporary interiors. It is perfect for a deck-mounting installation and is easy to access for cleaning and maintenance. For a swift wastewater disposal method, this mixer can be supplied with a fitted push button waste. Suitable to use with wall-hung, cloakroom, under-mount and .

• Available in different heights: 136mm and 180mm – [Optional].
• It comes in a luxury chrome finish.
• Clear, clean lines with ultra-modern waterfall spout.
• Ceramic disc technology for long life and smooth operation.
• Cartridge material: Plastic.
• Suitable for deck-mounted installation.
• Pipe size: 15 mm (1/2 inch BSP).
• Suitable for low-pressure water system.
• Requires 0.2 bar operating water pressure.
• Download the Customer Datasheet and Installation Instruction PDF File from the Additional Info Section.

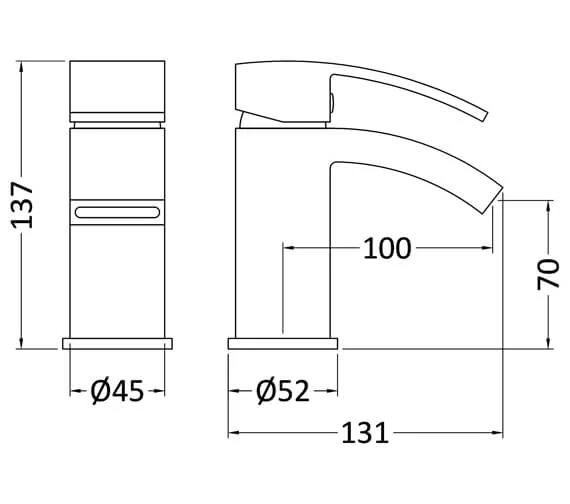

• Technical drawing available for more technical details.

• Details For 137mm Height:.
• Height: 137mm.
• The centre of the inlet to the centre of the outlet: 131mm.
• Base to spout: 70mm.
• Flow rates (1/min): 0.1 bar – 2.2, 0.5 bar – 7, 1 bar – 10.3, 2 bar – 14.7, 3 bar – 18.2.
• Details For 180mm Height:.
• Height: 180mm.
• The centre of the inlet to the centre of the outlet: 134mm.
• Base to spout: 111mm.
• Flow rates (1/min): 0.1 bar – 3.5, 0.5 bar – 8.3, 1 bar – 12, 2 bar – 17, 3 bar – 21.
