Nuie Sequential Round Thermostatic Shower Valve Chrome

Nuie Bathroom, a company that has carved a niche for itself in the bathroom sanitary ware market, has now come up with Exposed Sequential Thermostatic Shower Valve with Lever Handle. This unbelievably sleek and futuristic fitting provides you with efficient functionality while the chrome finish allows blending well with the bathroom decor, this bathroom necessity is suitable for use within .

Fitted with Valquest cartridge to safeguard against accidental scalding, its single piece thermal cartridge technology assures you of safety in case of failure of hot or cold water supplies. Available at a bargain price from our online store, it comes with a five-year guarantee from Nuie against manufacturing defects.

• Available in different variants: Exposed or Concealed [Optional].
• Choice of handle available – Lever and Round [Optional].
• It comes in a chrome finish.
• Suitable for use with unvented supplies combi boilers gravity and mains pressure systems.
• Single-piece cartridge technology.
• Temperature stability of +/- 2 degrees.
• Pipe size: 15mm (1/2″ BSP).
• Number of outlets: 1.
• Pipe size: 15 mm (1/2Inch BSP).
• Suitable for low-pressure water system.
• Requires a minimum of 0.2 bar of water pressure.
• Flow rate (l/m): 0.1 bar – 4, 0.5 bar – 9.5 bar, 1 bar – 15, 2 bar – 22, 3 bar – 27.
• Download Technical Data Sheet and Installation Instruction PDF File from the Additional Info Section.
• Refer technical drawing for more details.
• One year guarantee from Nuie against manufacturing defects.

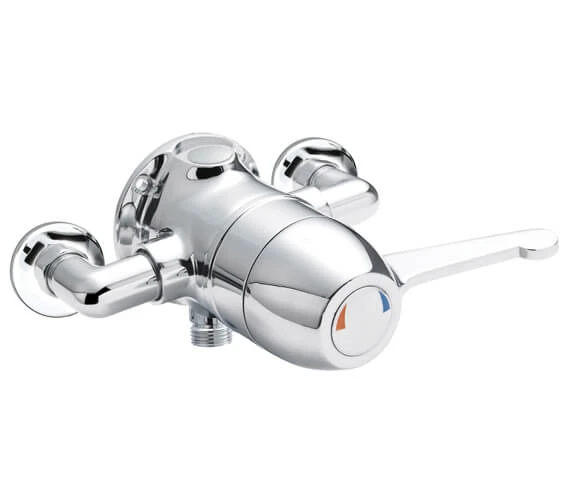

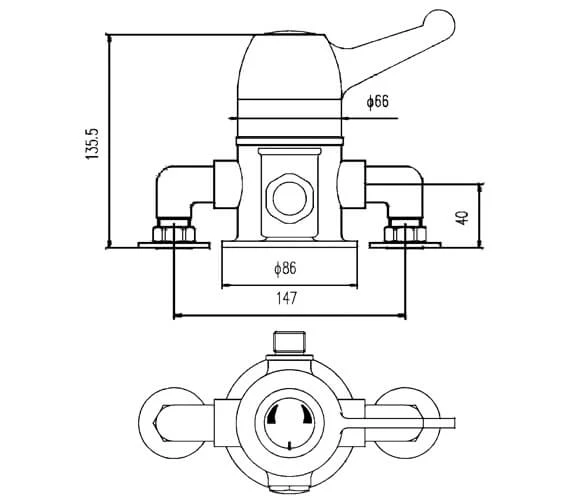

• Exposed valve with lever handle.
• Depth: 138mm.
• Pipe centres: 150mm.

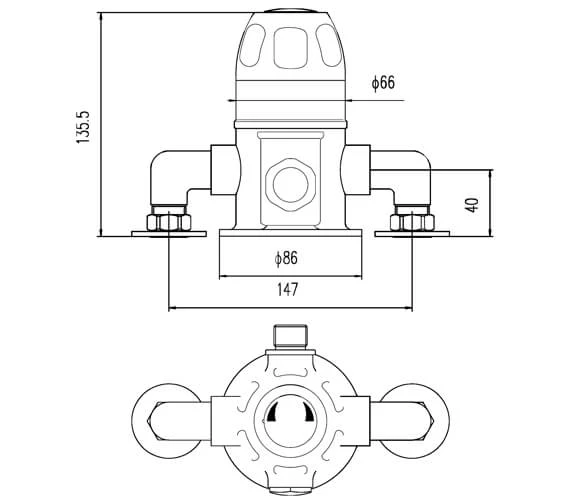

• Exposed valve with round handle.
• Depth: 138mm.
• Pipe centres: 147mm.

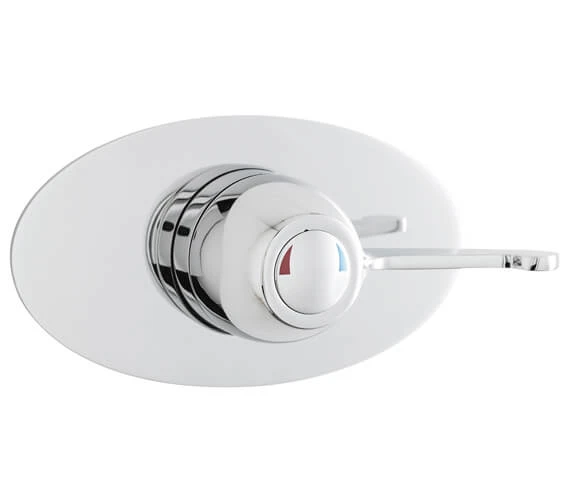

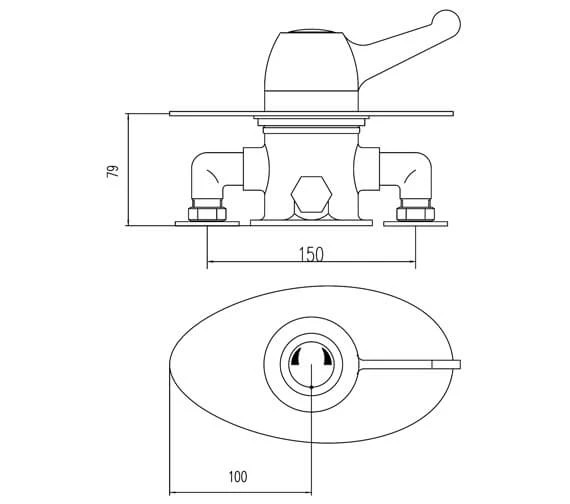

• Concealed valve with lever handle.
• Overall depth: 152mm.
• Building-in depth required: 79mm.
• Pipe centres: 150mm.

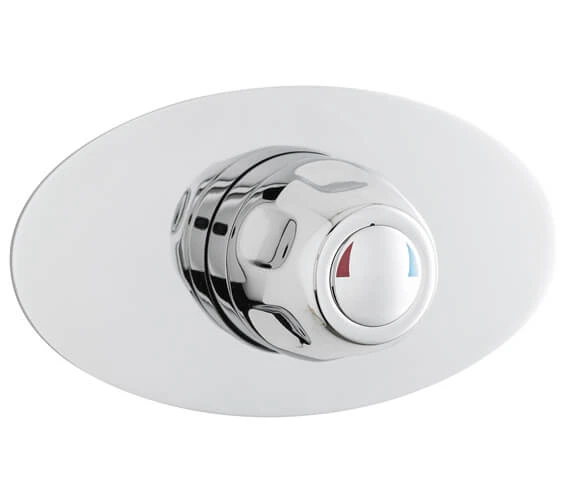

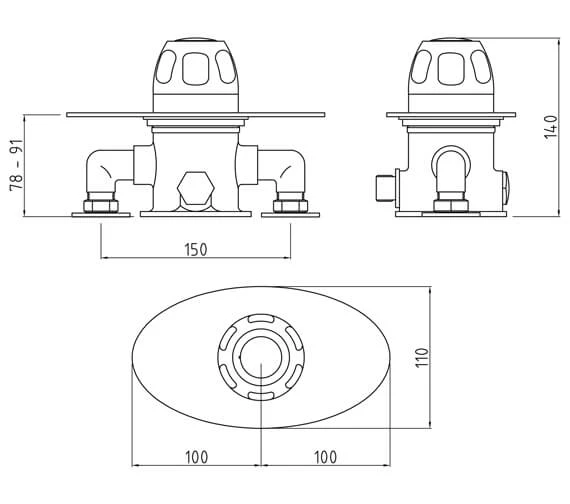

• Concealed valve with round handle.
• Depth: 140mm.
• Backplate height: 110mm.
• Building-in depth required: 78-91mm.
• Pipe centres: 147mm.
