Niagara Soho Waterfall Bath Filler Tap Chrome

The Niagara Soho Waterfall Bath Filler Tap is suitable for deck-mounted installation and makes a stunning addition to any modern bathroom layout. Complete with a body crafted from sturdy brass material as well as a handle crafted from zinc, this unit is perfectly coated in a fabulous chrome finish and fits in perfectly to any style of home decor. Designed with ¾” BSP inlet connections and installation upon a bath with two tap holes for use, this product is meant for placement within a low-pressure water system, requiring between 0.2 bar and 10 bar of water pressure for full functionality.

• Suitable for deck-mounted installation.
• Inlet connections: 3/4inch BSP.
• Number of tap holes required: 2.
• The pressure required: Min. 0.2 bar and max. 10 bar.

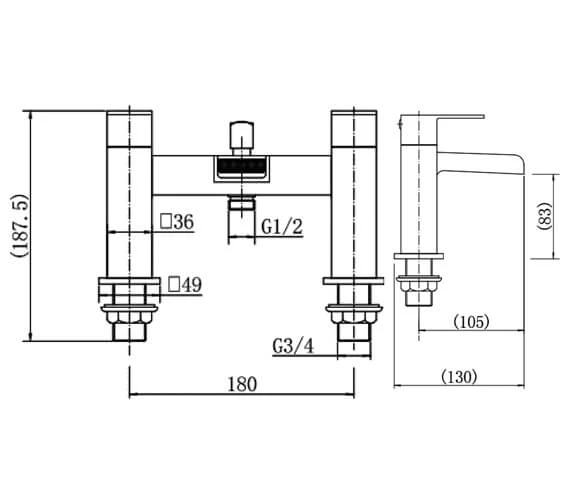

• Refer to the technical drawing for more size details.
• Specification For Tap Only:.
• Height: 172mm.
• Centre of the inlet to centre of outlet: 105mm.
• Inlet centres: 180mm.
• Base to spout: 67.5mm.
• Includes back nut.
• Material: Body – Brass, Handle – Zinc.

• Weight: 1.81Kg.
• Flow Rates (litres per minute): 0.5 bar – 27.1, 1 bar – 37.4, 3 bar – 64.1.
• Specification For Tap With Shower Kit:.
• Includes: Shower kit, wall bracket and back nut.
• Height: 187.5mm.
• Centre of the inlet to centre of outlet: 105mm.
• Inlet centres: 180mm.
• Base to spout: 83mm.
• Weight: 2.06Kg.
• Material: Body – Brass, Handle – Zinc, Handset – ABS + Stainless Steel, Hose – Stainless Steel.
• Flow Rates (litres per minute): 0.5 bar – 26.7, 1 bar – 36.7, 3 bar – 63.2.
