Hudson Reed Tec Dual Thermostatic Shower Valve Chrome

The Hudson Reed Tec Thermostatic Dual Exposed Shower Valve strikes the perfect balance between luxury styling and exquisite craftsmanship. It features an exposed wall-mounted installation made from solid brass. The brass body is encased in a smooth chrome finish. WRAS approved, it requires a minimum water pressure of 0.1 bar [LP-Low Pressure] for smooth functioning. Built-in Thermostatic control assures safety and peace of mind while the anti-Scald feature offers prevention against scalding if hot or cold water fails. You can say goodbye to calcium build up – even in hard water areas due to the patented cartridge’s high resistance.

• Available in different variations – Concealed and Exposed [Optional].
• It comes in a chrome finish.
• Pipe size: 15mm (1/2inch BSP).
• The shower kit shown in the image is not included.
• The minimum water pressure recommended for smooth working is 0.1 bar [LP-Low Pressure].
• The minimum flow rate is 5.5 litres per minute at 0.1 bar water pressure.
• Accurate flow control and excellent flow rates – even at low pressure.
• Thermostatic control to +/- 1 °C even if the water pressure fluctuates.
• In the event of hot or cold water failure, the valve will shut down automatically.
• The patented cartridge is highly resistant to calcium build-up – even in hard water areas.
• Suitable for use with all systems, gravity-fed pumped unvented high pressure or fully modulated combi-boilers.
• The cartridge is fully reversible, meaning if hot and cold supplies are the wrong way round, it doesn’t need re-plumbing – simply remove the cartridge, turn 180° and replace.
• Manufactured using the latest technique of thermostat.
• Download the Fitting Instructions and Data Sheet for shower valve PDF File from the Additional Info Section.

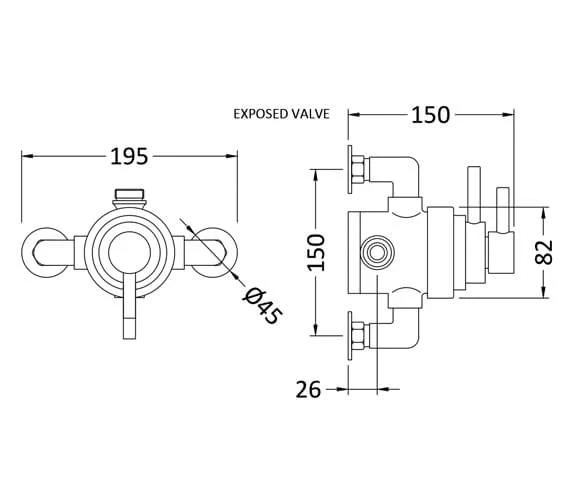

• Refer to the technical diagram for complete technical dimensions.
• Features Of Exposed Valve :.
• Exposed wall-mounted installation.
• Size: 195 x 150 x 150mm [Width x Depth x Height].
• Inlet Centers: 150mm.
• Valve/Cartridge: Quarter turn.

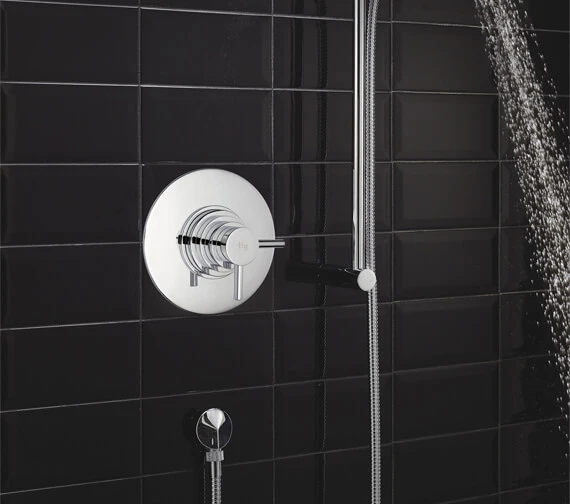

• Features Of Concealed Valve :.
• Concealed wall-mounted installation.
• Round shape body with two lever handles.
• Size: 185 x 142 x 173mm [Width x Depth x Height].
• Inlet centre: 155mm.
• Diameter: Ø185mm.
• Mount Type: Wall / Recess.
