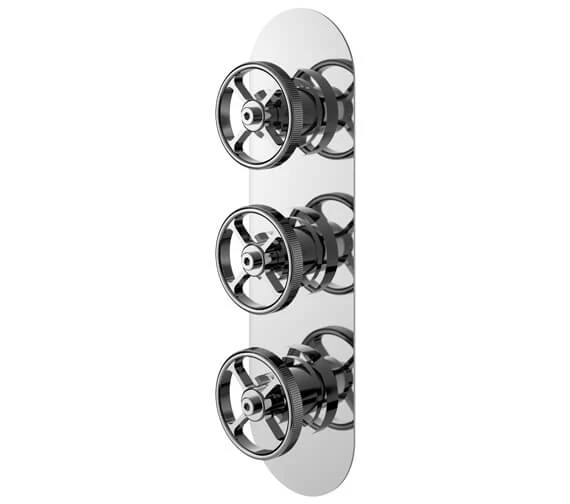

Hudson Reed Revolution Industrial Triple Shower Valve comes with or without diverter in a stunning format. It has a Width of 100mm, Depth of 145mm and Height 280mm. Suitable for low-pressure water systems, it works with a minimum of 0.1 bar of water pressure. Designed for industrial purpose, the high quality internal brassware assures unhindered service. The valve finds applications in gravity fed pumped unvented high pressure or fully modulated combi-boilers.
- ✔Choice of different finish: Chrome, Matt Black and Brushed Brass [Optional]
- ✔Quarter turn valve operated
- ✔High-quality internal brassware
- ✔Twenty years guarantee from Hudson Reed against manufacturing defects
- Available in different variants: Without Diverter Or With Diverter [Optional].
- Size: Width 80mm x Depth 145mm x Height 280mm.
- Compatible to use for industrial purposes.
- Accurate flow control.
- Excellent flow rates.
- Suitable for use with all systems: gravity-fed pumped unvented high pressure or fully modulated combi-boilers.

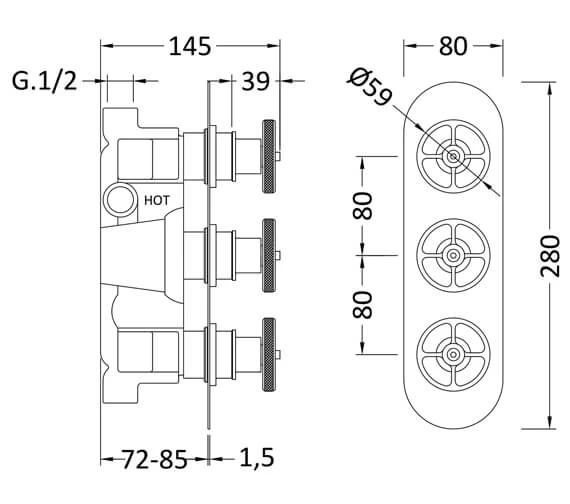

- For complete size details, please refer to technical drawing.
- During installation, extra care must be taken to avoid damaging the fittings.
- Details For Without Diverter:.
- Mount Type: Wall, Recessed.
- Pipe size: 15mm and 22 mm.
- No. of Outlets: 2.
- Approval: WRAS, TMV2 and TMV3.
- Suitable for low-pressure water system.
- Requires a minimum of 0.1 bar or above water pressure to operate smoothly.
- Details For With Diverter:.
- Mount Type: Wall, Recessed.
- Pipe size: 22 mm (3/4inch Bsp).
- Pipe centre: 125mm.
- No. of Outlets: 3.
- Suitable for medium-pressure water system.
- Requires a minimum of 0.5 bar or above water pressure to operate smoothly.
- Download Customer DataSheet PDF from the Additional Info Section.
