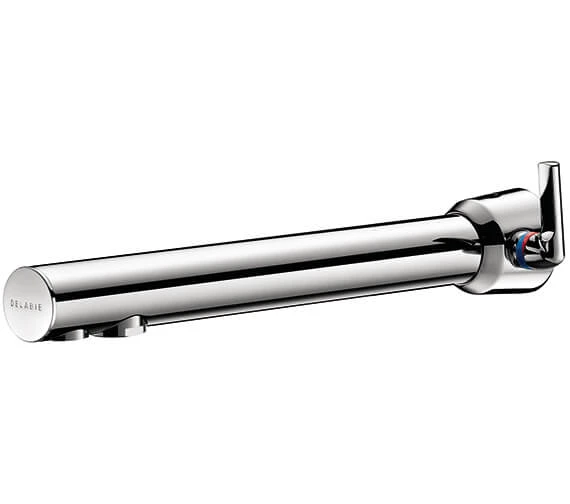

The Delabie Binoptic Mix Electronic Basin Mixer Tap is designed for placement within a cross wall installation with a wall-less than 110mm in depth; this product offers total hygiene by requiring absolutely no touch to operate it for use. WRAS and CE approved, this unit is suitable for use by anyone with reduced mobility. Boasting an active, infrared presence detector that includes a sensor on the end of the spout itself, this product also features a side temperature control with a standard lever as well as an adjustable maximum temperature limiter. Available for purchase in 2 different variations to choose from to fit each particular bathroom set-up.
- ✔Features Anti-blocking safety technology
- ✔An active, infrared presence detection sensor at the end of the spout optimises detection
- ✔WRAS and CE-approved product
- ✔Ten years warranty against any manufacturing defects.
- Available in 2 variants.
- Cross wall installation = 110mm.
- Total hygiene: no manual contact.
- Independent IP65 electronic control unit.
- 230/12V mains supply with transformer.
- Flow rate pre-set at three lpm at 3 bar, can be adjusted from 1.5 to 6 lpm.
- Scale-resistant flow straightener.
- Chrome-plated brass body.
- Cable for sensor, flexible and mounting all pass through the same hole.
- Spout with a smooth interior and low volume of water (reduces bacterial niches).
- Side temperature control with standard lever and adjustable maximum temperature limiter.
- Suitable for people with reduced mobility.
- Spout reach: 230mm.

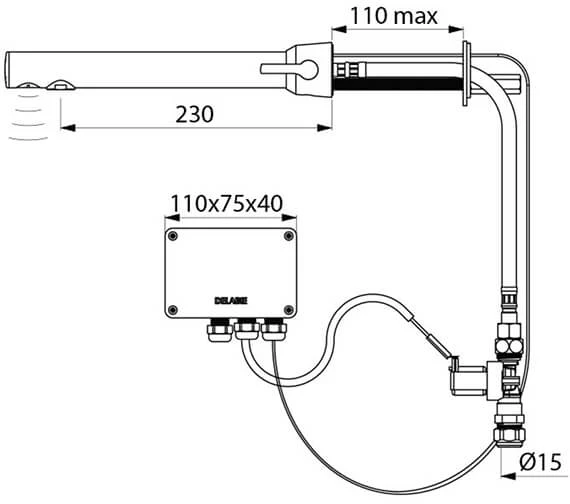

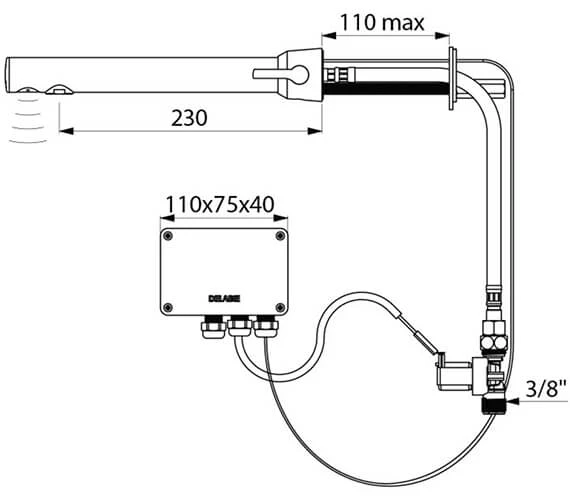

- Refer technical diagram for more technical detail.
- Specification For M3/8 Inch:.
- Filters and solenoid valves M3/8 Inch.
- Adjustable duty flush (pre-set flush – 60 seconds every 24 hours after last use).
- Specification For Ø 15mm Conical Inlets:.
- Filters, solenoid valves, and Ø 15mm conical inlets.
- Duty flush (-60 seconds every 24h after last use).
