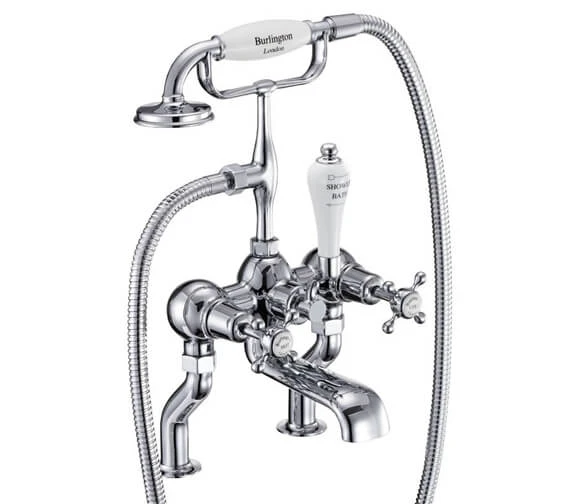

Burlington Deck Mounted Traditional Bath Shower Mixer Tap With Claremont Handles

Burlington Deck Mounted Traditional Bath Shower Mixer Tap With Claremont Handles is full of pleasant surprises. Made of brass ingots and chrome-plated to perfection, it will put a sparkle into your bathroom. Deck-mounted for convenience, this tap comes with a standard cradle, S adjuster, ceramic diverter, hose, and telephone handset.

Suitable for both high and low-pressure systems, this 503mm mixer tap comes with a flow-straighter for use in low-pressure systems and an aerator for high-pressure systems and carries a 15-year guarantee from Burlington against any material or manufacturing flaw.

• Available in different variations.
• Product includes:.
• Angled bath shower mixer (Including the standard cradle, ‘S’ adjuster, diverter handle, hose, ceramic telephone handset, Claremont tap handles and deck mounting unions).
• Claremont have four spindle tap head with a ceramic indice in the centre.
• Depth: 157mm.
• The centre of the inlet to the centre of the outlet: 130mm.
• Hose length: 1500mm.
• Hose diameter: Ø14mm.
• Deck-mounted installation.

• Traditional style.
• The regent base adds an extra 27mm height to the tap.
• Suitable for both low and high-water pressure systems.
• Supplied with flow straighter for use with low water pressure.
• Supplied with neoperl aerator for use with high water pressure.

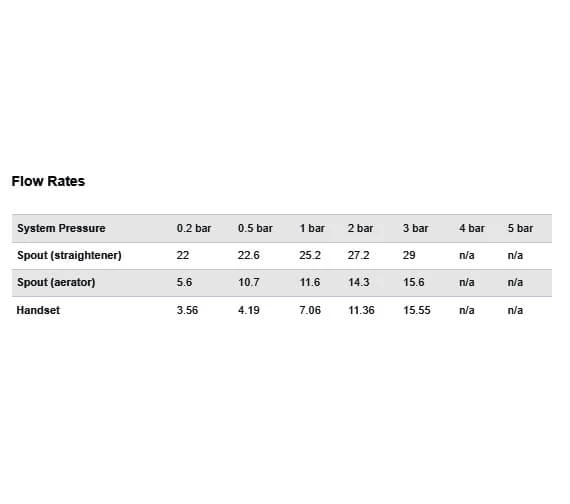

• For specific flow rates – See the additional image.

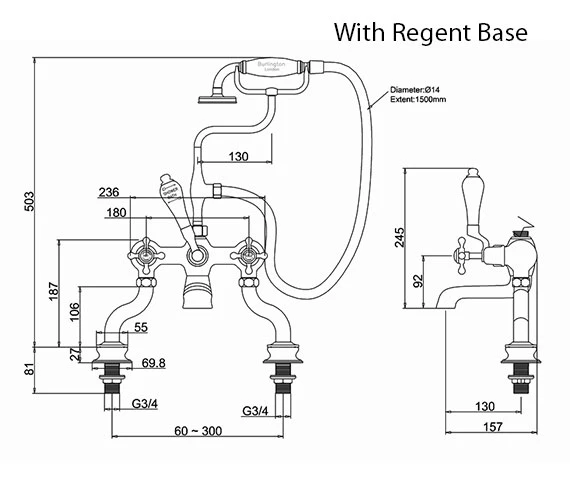

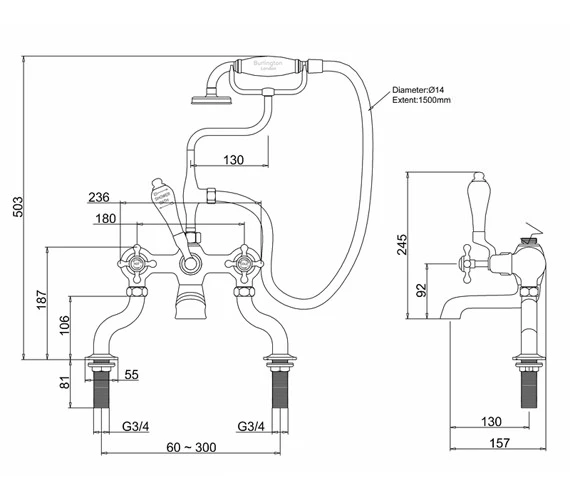

• Refer to the technical image for additional dimensional details.
• Download the installation instructions PDF file from the Additional Info Section.

Note: Every BSM is supplied with the ‘S’ adjuster in the box – so you can make your choice at the point of installation. This additional piece is inserted into a BSM via two Allen key fixings Allen key is supplied. It has double recessed ‘O’ rings internally on both sides – this means that the ‘S adjuster’ can be installed at a fixed angle or in a semi-rigid manner. The ‘S’ adjuster is designed so that the last drips after using the telephone handset drip into the bath –
not onto the tap ledge, this reduces cleaning and reduces mold and potential water ingress at the perimeter of the bath. If installed in a semi-rigid manner – you can swivel the ‘S adjuster’ left or right –
to be parallel with the short side of the bath – so it is out of the way if two people are in the bath or you are showering in the bath.
