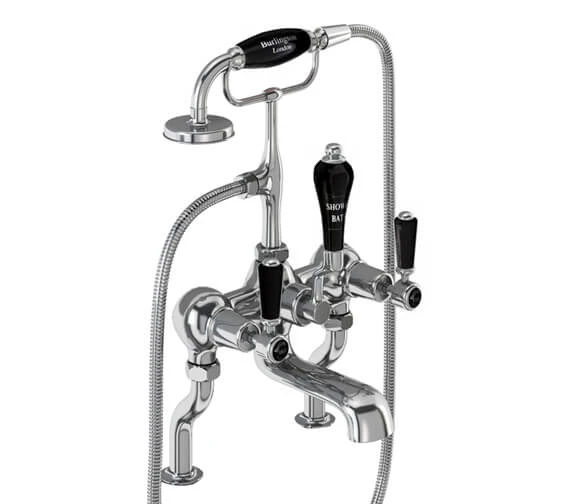

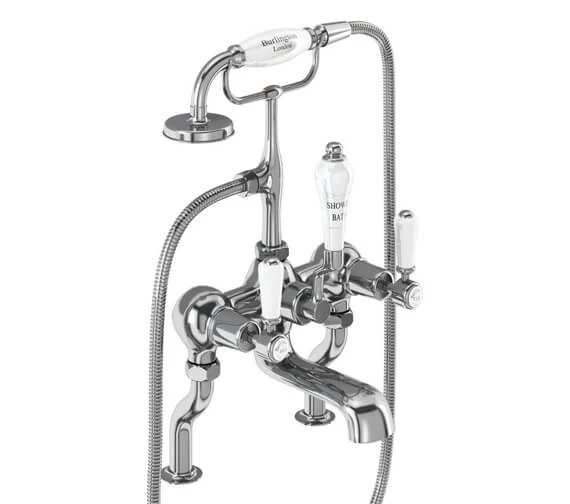

Burlington Deck Mounted Bath Shower Mixer Tap With Kensington Handles

Glorify the beauty of your sanitary ware by fitting it with the Bath Shower Mixer Tap, which comes to you from the house of Burlington. With a diverter, hose and , this brassware offers sensational bathing pleasures every time you use it.

The traditionally designed faucet carries a shimmering chrome finish that accentuates its retro vibe and enhances aesthetics. Indices are made from ceramic, while the spout is curving and stylish. Quarter turning valves, swivelling spout, flow-straightener and aerator make it worth every penny you spend on it!

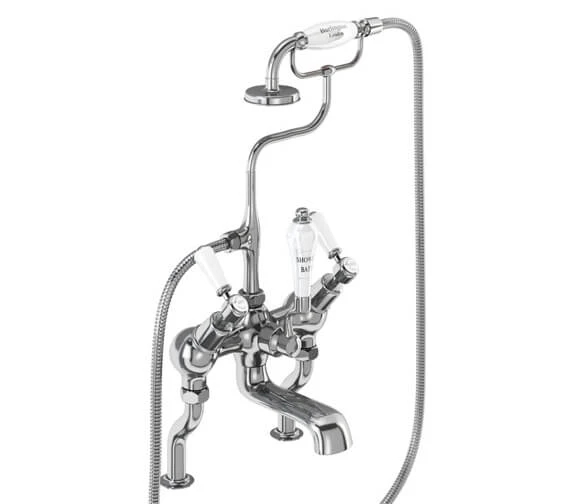

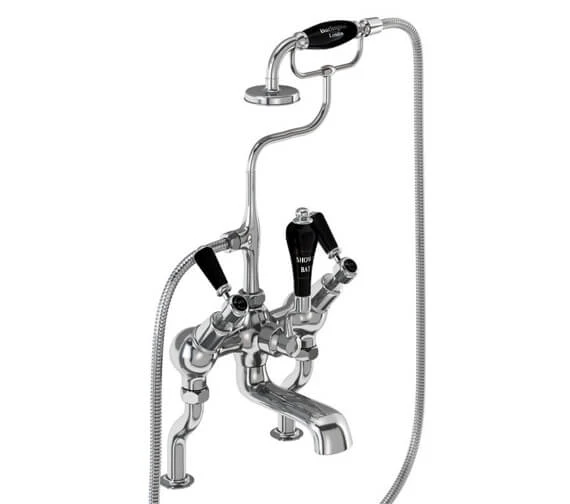

• Available in 2 handle variants: Straight Handle, Angled Handle.
• 3 Accent finishes are available: White, Medici, and Black.
• Includes:- Quarter turn bath shower mixer with a standard cradle, ‘S’ adjuster, ceramic diverter, hose, ceramic telephone handset, deck mounting unions, 2 x Kensington handles.
• Chrome-plated.
• Traditional style.
• Suitable for both low and high-water pressure systems.
• Requires a minimum of 0.1 bar of water pressure.
• Supplied with flow straighter for use with low water pressure.
• Also provided with aerator for use with high water pressure.

• Height: 503mm.
• Centre of the inlet to the centre of the outlet: 130mm.
• Inlet centres: 300mm.
• Shower hose internal diameter: Ø14mm.
• Shower hose length: 1500mm.
• Bath shower mixer spout swivels.
• Download the Installation Instruction PDF File from the Additional Info Section.

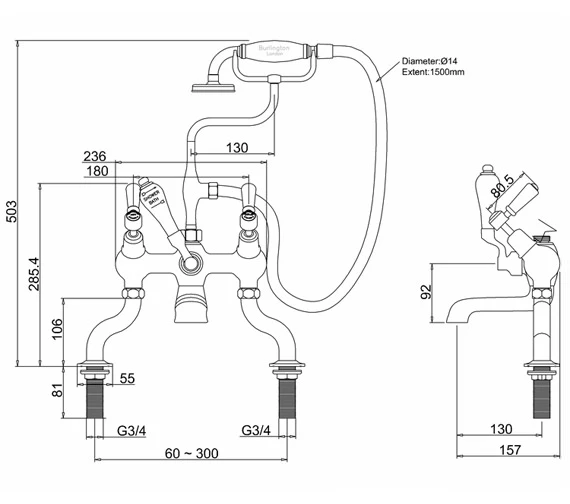

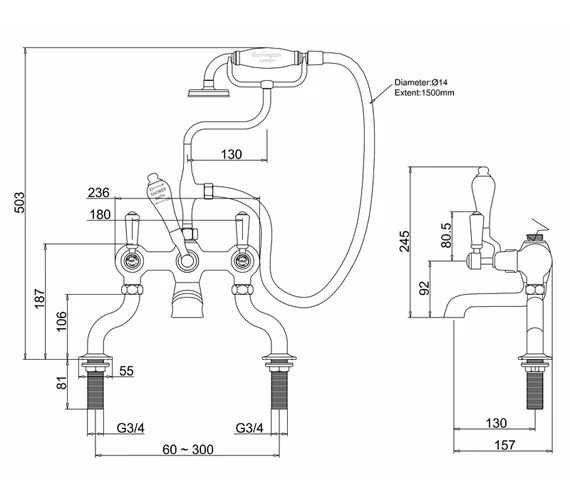

• Refer to the technical diagram for complete technical dimensions.

Note: Bath shower mixer BSM comes with an ‘S adjuster’. This additional piece is inserted into a BSM via two Allen key fixings Allen key is supplied. It has double recessed ‘O’ rings internally on both sides –
this means that the ‘S adjuster’ can be installed at a fixed angle or in a semi-rigid manner. The ‘S adjuster’ is designed so that the last drips after using the telephone handset drip into the bath – not onto the tap ledge. This reduces cleaning, mould, and potential water ingress at the bath’s perimeter. If installed in a semi-rigid manner – you can swivel the ‘S adjuster’ left or right – to be parallel with the short side of the bath – so it is out of the way if two people are in the bath or you are showering in the bath. Every BSM
is supplied with the ‘S’ adjuster in the box – so you can choose at the point of installation.
