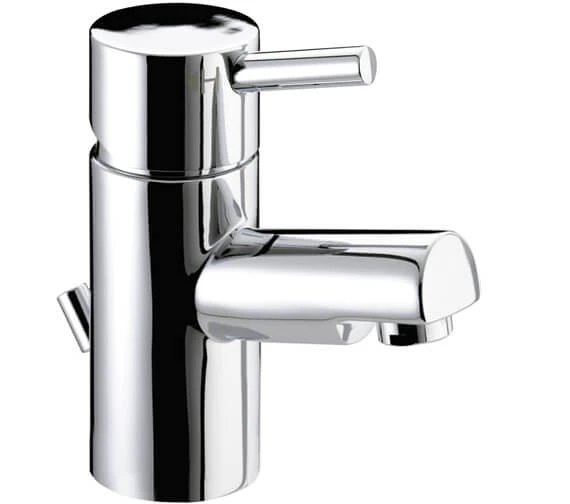

Bristan Prism Deck Mounted Chrome Basin Mixer Tap

Bristan has always endeavoured to provide you with the most effective and functional products. In keeping with this tradition, it has now come up with the Basin Mixer Tap from its Prism series. The ultra-modern basin stunner is exclusively designed to give you more ease and greater comfort in usage. The solid tubular form is supported by a straight spout and tubular lever.

The mixer tap, made from solid brass, features ceramic disc cartridge for improved functionality. It is backed with a 10-year guarantee from the manufacturer and available in 3 variations. At QS Supplies, you can easily pair up this tap with a to give your bathroom an elegant look.

• Available in 3 variations: Tap without waste, Tap with pop-up waste and Tap with eco-click and pop-up waste.
• Deck mounted installation.
• Easy-to-use lever handles.
• Size : 50 x 140mm [Width x Height].
• Base to spout: 63mm.
• Centre of the inlet to centre of outlet: 100mm.
• Suitable for all plumbing systems.
• Details of the tap without waste :.
• Connection inlet: M10 x 15mm screw-in copper connection.
• Requires a minimum of 0.2 bar to a maximum of 8.0 bar of water pressure.
• Maximum hot water temperature: 65°C.
• Maximum static pressure: 10 bar.
• Metal fixing nut for added durability.
• Long-life ceramic cartridge for added durability and ease of use.
• Details of tap with Pop-up waste :.
• Connection inlet: 15mm flexible compression tails.
• Connection outlet: M24 5lpm flow limiter.
• Requires a minimum of 0.2 bar to a maximum of 8.0 bar of water pressure.

• Maximum hot water temperature: 65°C.
• Maximum static pressure: 10 bar.
• Metal fixing nut for added durability.
• Pop-up waste included.
• Long-life ceramic cartridge for added durability and ease of use.
• Details of tap with Eco-click and Pop-up waste :.
• Connection inlet: M10 x 15mm screw-in copper tail pipes.
• Connection outlet: M24 flow straightener.
• Flow control valve type: 35mm Eco-Click cartridge.
• Requires a minimum of 0.2 bar to a maximum of 5.0 bar of water pressure.
• Maximum hot water temperature: 65°C.
• Maximum static pressure: 10 bar.
• Metal fixing nut for added durability.
• The eco-click cartridge offers subtle resistance as it reaches approximately half its full flow capacity, saving water. This feature can be over-ridden for increased flow.
• Aerator flow straightener fitted for a softer non-splash flow.
• Pop-up waste included.
• Long-life ceramic cartridge for added durability and ease of use.

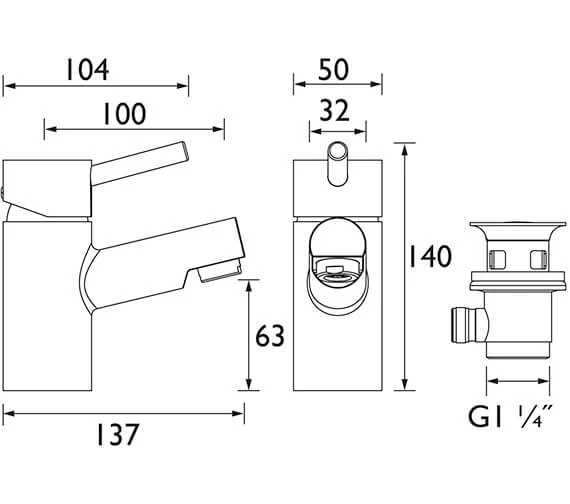

• Refer technical diagram for technical detail.
