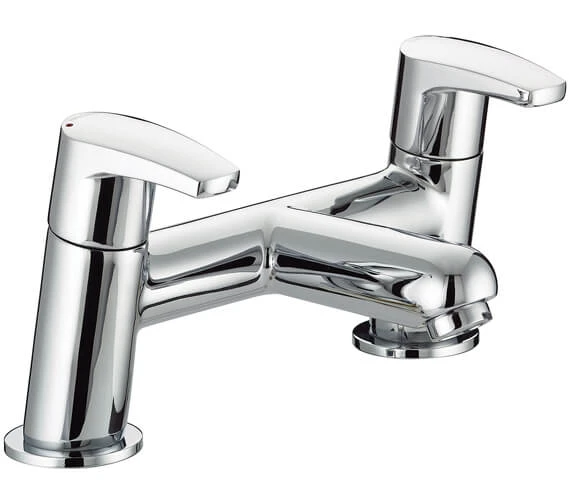

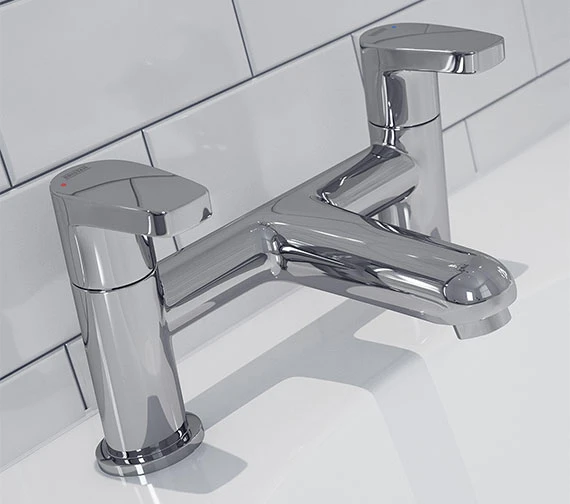

Bristan Orta Deck Mounted Chrome Bath Mixer Tap

Meticulously designed, the Orta Bath Mixer Tap from Bristan is a rare amalgam of top-class construction and modern design. The adoring bath tap gives a show-stopping look to your bath due to its majestic looks with a rounded spout mouth and solid cylindrical feet. The smooth lever handles placed on top also gleam with the shimmering chrome finish that enables it to blend with any modern bathtub, be it a double-ended shower bath or . The tap features quarter-turn technology, allowing easy operation. It is covered with a 10-year guarantee from the manufacturer. Get it today, at an economical price, from QS Supplies.

• Available in 2 variations: Tap Only And Tap With Stick Handset.
• Deck mounted installation.
• Handle type: lever handle.
• Flow type: single flow.
• Connection inlet: 3/4 inch BSP.
• Valve cartridge type: manual.
• Suitable for all plumbing systems.
• Requires a minimum of 0.2 bar to a maximum of 10 bar of water pressure.
• Maximum hot water temperature: 65°C.
• Maximum static pressure: 10 bar.
• Long life and easy to use 1/4 turn ceramic disc valves.
• Metal back nuts for added durability.

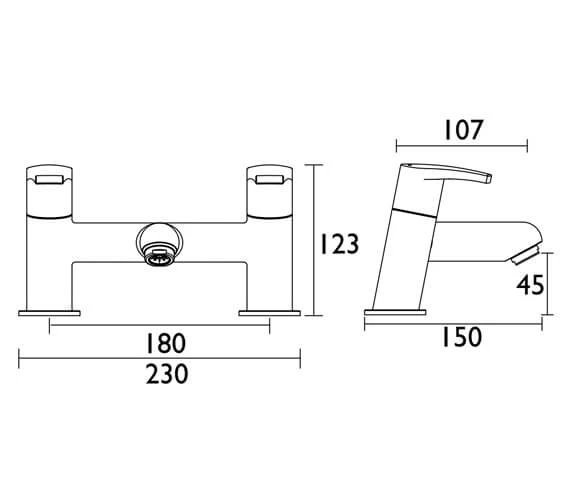

• Refer to the technical diagram for technical detail.
• Features Of Tap Only :.

• Connection outlet: M24 flow straightener.
• Height – 123mm.
• Width – 230mm.
• Depth – 150mm.
• Spout Reach – 107mm.
• Base To Spout – 45mm.

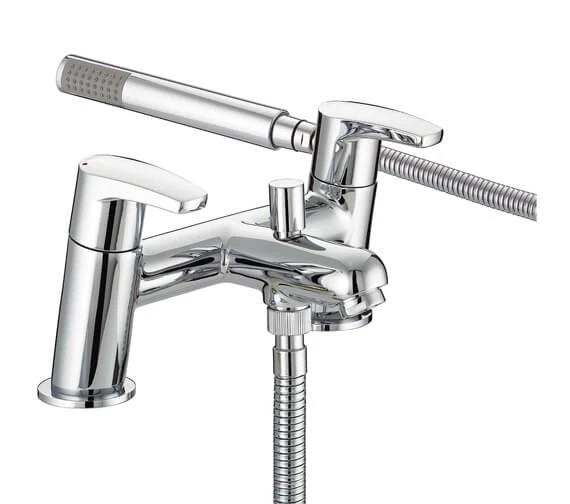

• Features Of Tap With Stick Handset :.
• Connection outlet: G1/2 inch.
• Includes 1.75m hose, rub-clean anti-limescale handset and wall bracket.
• Height – 123mm.
• Width – 230mm.
• Depth – 145mm.
• Spout Reach – 110mm.
• Base To Spout – 46mm.
