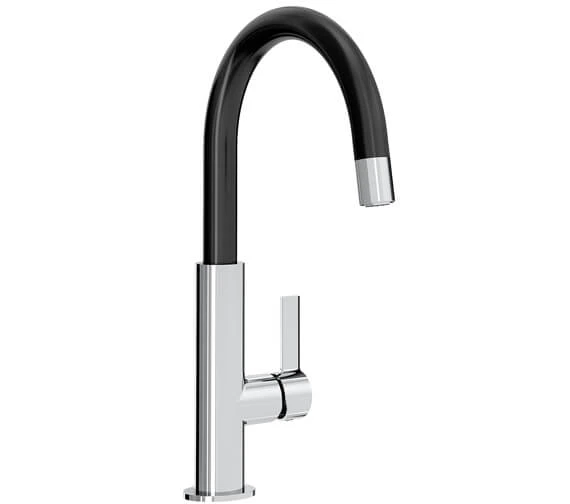

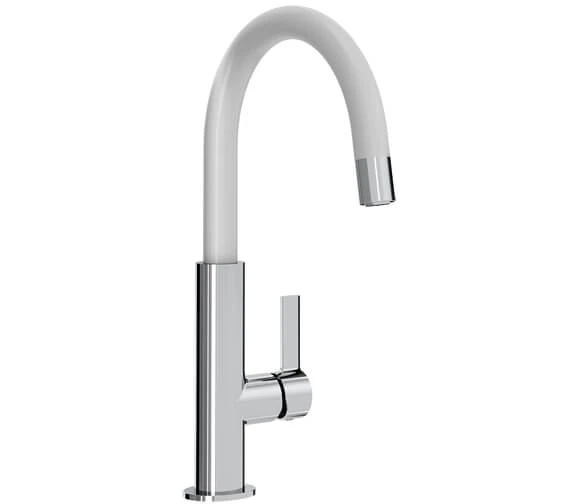

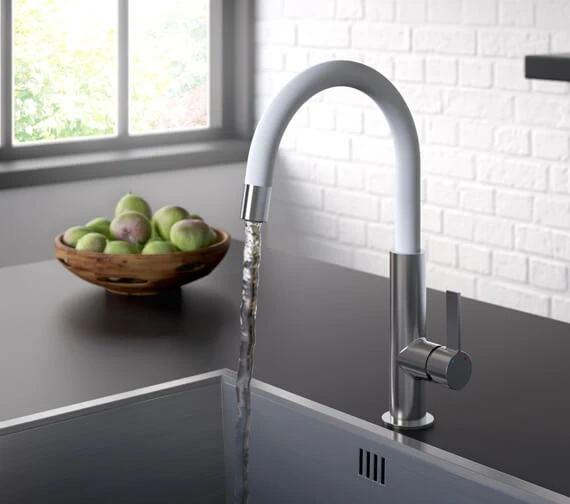

Bristan Melba Deck Mounted Kitchen Sink Mixer Tap

The Bristan Melba Kitchen Sink Mixer Tap is sure to make a style statement in your kitchen with its sleek, arresting and contemporary looks. It sports a curved spout on a solid base with a side-mounted metal handle. The single lever with clearly marked indices for hot and cold feeds can be manoeuvred to achieve a balanced temperature.

Its smooth, solid body with an easily accessible profile gives it a wipe-clean arrangement, while inside the ceramic disc cartridge ensures a smooth and precise flow of water. Cast in the finest quality brass, this tap is robust and hard-wearing. It wears a dazzling chrome and black or chrome and white finish, which gives it a high-end, sophisticated look. Give your kitchen a complete makeover by installing this tap with a .

• Contemporary style tap.
• Deck mounted installation.
• Metal fixing nut and handle.
• Connection inlet: 1/2 inch BSP flexible tails.
• Valve cartridge type: 25mm cartridge.
• Suitable for high water pressure system.
• Working pressure range: min 1.0 bar, max 5.0 bar.
• Maximum hot water temperature: 65°c.
• Maximum dynamic pressure: 5 bar.

• Size: 50mm x 350mm x 225mm (Width x Height x Depth).
• Base to spout: 215mm.
• Centre of the inlet to centre of outlet: 190mm.
• Maximum static pressure: 10 bar.
• Flow type: single flow.
• Flow rate : (l/min @ 3 bar) 12.9.
• Connection outlet: M22 flow straightener.
• Download the Installation Instruction PDF File From The Additional Info Section.

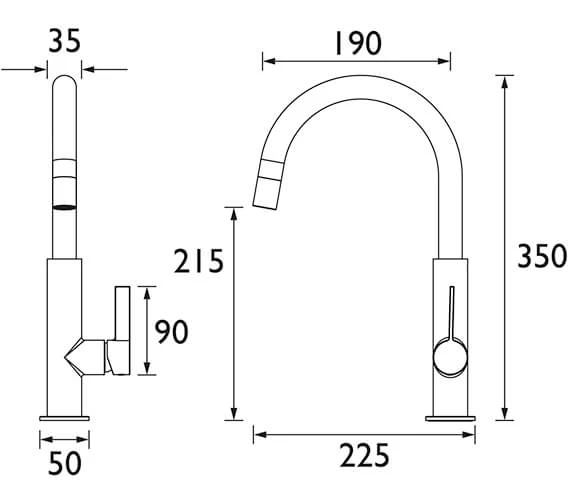

• For complete size details, please refer to the technical drawing.
