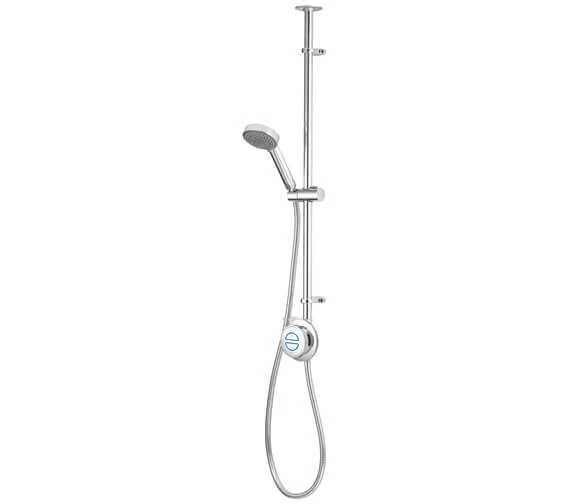

Aqualisa Quartz Classic Smart Digital Exposed Shower Set

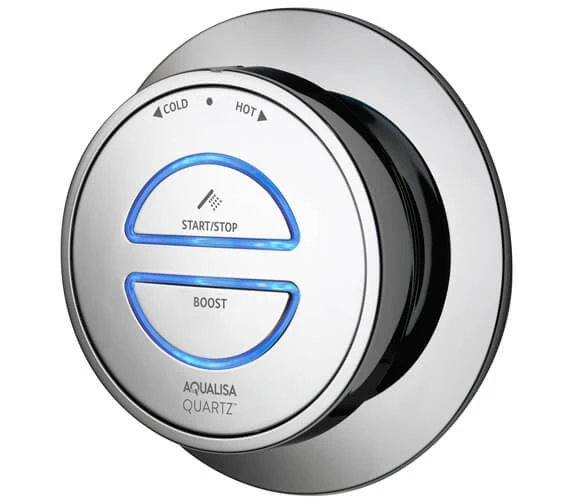

Aqualisa Quartz Classic Smart Digital Exposed Shower Set comes with slide rail, 1.5m metal hose, handset and controller. It offers precise temperature perfect, thermostatic showering for peace of mind. Its start/stop button and divert control offer ease of use while intuitive LED display shows once the chosen temperature has been reached. Complete with the convenience of a remote control, this product is water saving as well. Its highlights are the Aqualisa slider and 4 spray patterns including eco-spray option.

• Available in 2 variants: HP – Combi, Gravity Pump.
• Single outlet exposed digital shower.
• Boost button for a powerful showering performance.
• Multiple showers can be controlled from 1 app.
• Compatible with wired remote control.
• Optional Eco mode on the Smart valve, which can be selected for water saving up to 33%.
• 1500mm Metal hose included.
• Rail length: Height 1019mm x Width 25mm.
• Supplied with 105mm Harmony handset with four spray patterns (Inner, Outer, Middle, Eco).
• Controller unit size: 120 x 40 x 120mm [Width x Depth x Height].
• Inlet and Outlet fitting connections: 15mm push-fit.
• Water supply temp: 5°C min / 65°C max.

• 240v Electrical requirements.
• Cable and water entry point: Rear.

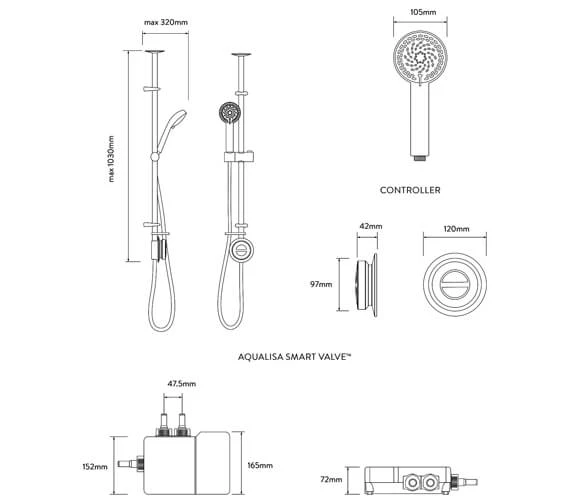

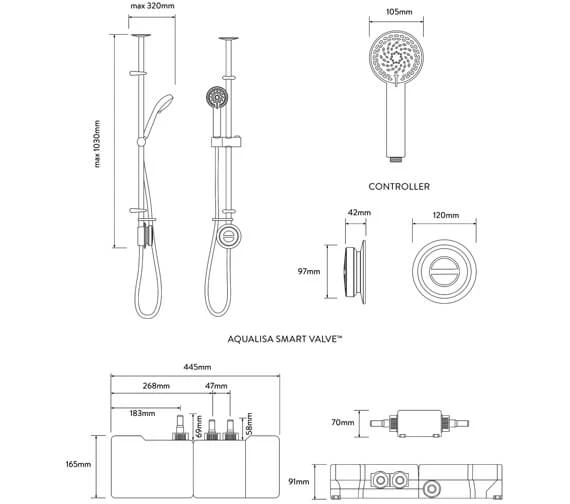

• Refer to the technical drawing for complete size details.
• Specifications for High-pressure combi system.
• Suitable to work with high-pressure water systems.
• Requires a minimum of 1 bar and a maximum of 7 bar of water pressure.
• Flow rates: 8-16 l/min.
• Specifications for Gravity Pumped.
• Comes with an integral pump.
• Suitable to work with low-pressure water systems.
• Requires a minimum of 0.1 bar and a maximum of 1 bar of water pressure.
• Flow rates: 10-16 l/min.
