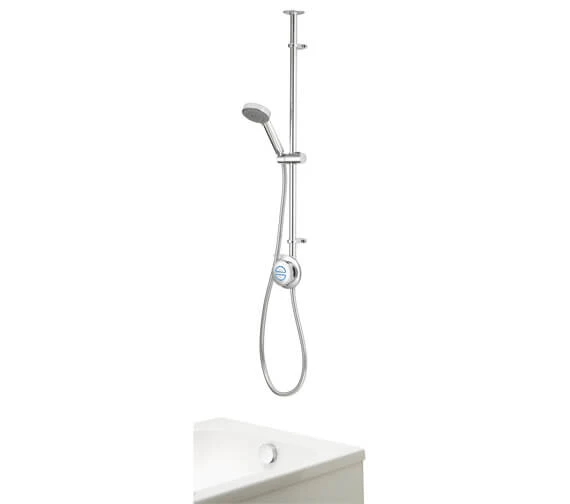

Aqualisa Quartz Classic Slide Rail Kit With Exposed Digital Valve And Bath Filler

The Aqualisa Quartz shower makes your showering time pleasant and refreshing. The Quartz set comes with a classic Slide Rail Kit with Exposed Digital Valve and a bath filler. The complete set is available for purchase in 2 variations: a high-pressure combi system and a gravity pumped system. The set also gives you the option of choosing to control with an easy-to-use button that diverts the water and the ability to operate it remotely via Wi-Fi, a mobile app, Google Home or Amazon Alexa.

Complete with eco-mode to conserve up to 33% of overall water consumption during use, this unit also boasts 15mm push-fit inlet and outlet connections, a 1500mm long metal hose, and an LED display that shows the desired results temperature has been reached, and the water is ready.

• Available in 2 variants: HP – Combi, Gravity Pump.
• Dual outlet Thermostatic shower valve.
• WiFi, Mobile App, Google Home & Amazon Alexa enabled to allow you to control your shower or bath remotely.
• Multiple showers can be controlled from 1 app.
• 105mm Harmony handset with 4 spray patterns, including eco spray and bath overflow filler.
• Compatible with wired remote control.
• Optional Eco mode on the Smart valve, which can be selected for water saving up to 33%.
• 1500mm Metal hose.
• Rail length: Height 1019mm x Width 25mm.
• Controller unit size: 120 x 40 x 120mm [Width x Depth x Height].
• 240v Electrical requirements.
• Inlet and Outlet fitting connections: 15mm push-fit.

• Water supply temp: 5°C min / 65°C max.
• Cable and water entry point: Rear.

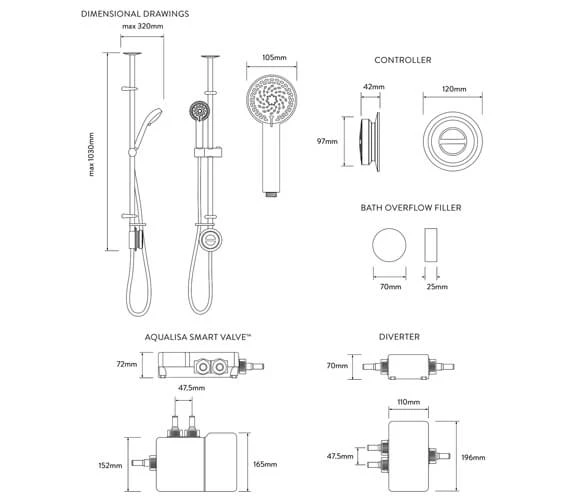

• Refer to the technical drawing for complete size details.
• Specifications for High-pressure combi system.
• Suitable to work with high-pressure water systems.
• Requires a minimum of 1 bar and a maximum of 7 bars of water pressure.
• Flow rates: 8-16 lpm.
• Specifications for Gravity Pumped.
• It comes with an integral pump.
• Suitable to work with low-pressure water systems.
• Requires a minimum of 0.1 bar and a maximum of 1 bar of water pressure.
• Flow rates: 10-16 lpm.
