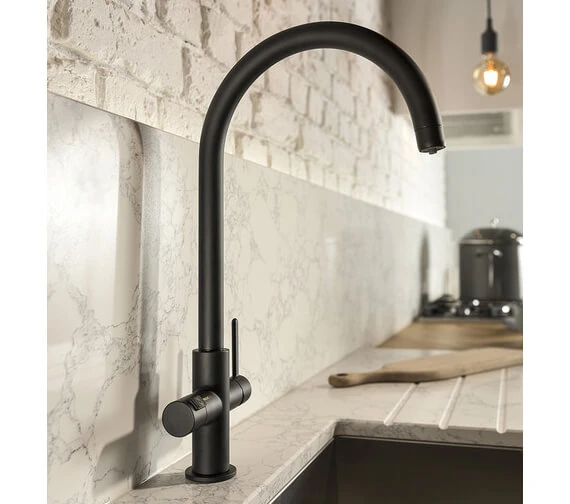

Abode Prothia 3 In 1 Swan Spout Slimline Monobloc Boiling Kitchen Sink Mixer Tap

With the Abode Prothia 3 In 1 Slimline Monobloc Boiling Kitchen Sink Mixer Tap, you can give your kitchen greater capabilities. The metallic tap features a swivelling body that will more easily move the water over all of the areas of the .

The lever is a vertical compact yet easy-to-grasp handle that works with the innovative ceramic disc to allow for more precise mixing of the water to give you domestic hot, cold and heated filtered water. Thanks to its safety features, you can avoid any possible scalding accidents. This deck-mounted model can be purchased in five finish choices and is simple to keep clean-just; wipe it with a clean microfibre cloth.

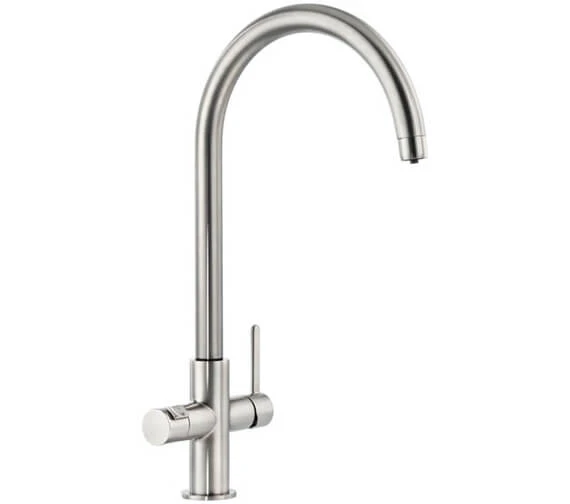

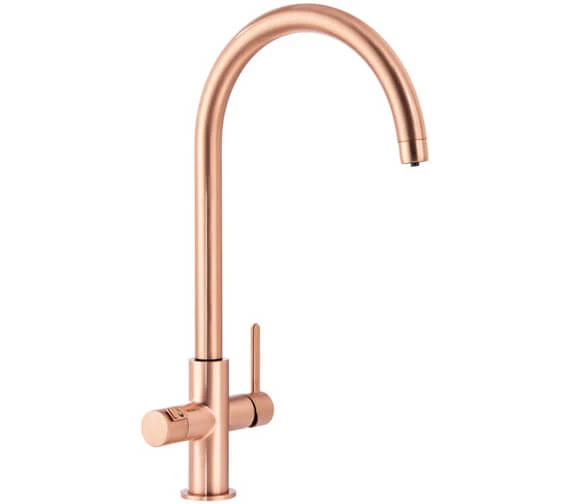

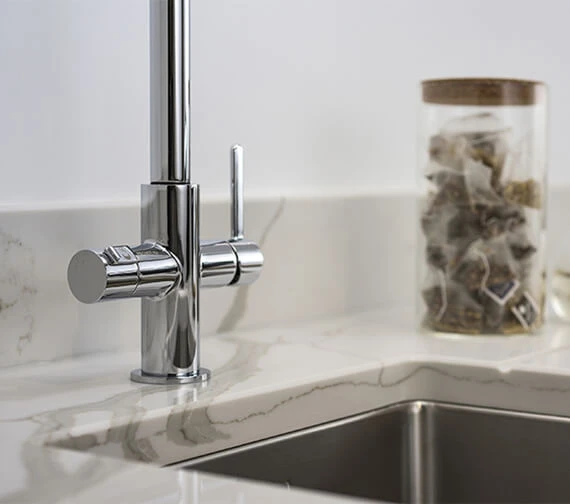

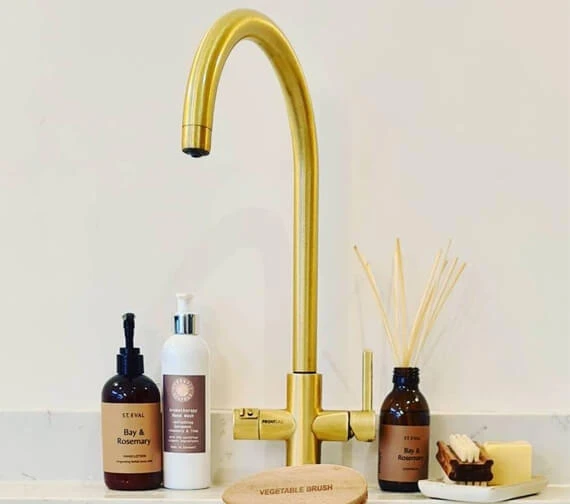

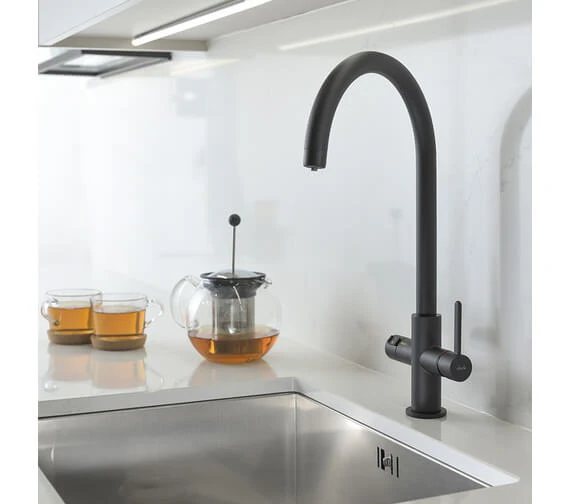

• Available in 5 finishes: Chrome, Brushed Nickel, Matt Black, Brushed Brass, Urban Copper.
• Download the Installation Instructions PDF from the Additional Info section.

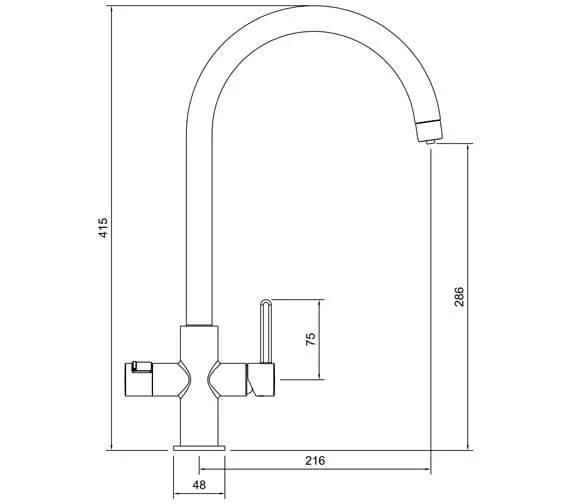

• Refer to the technical diagram for complete technical dimensions.
• Features Of Tap:.
• Stylish 3-way mixer tap delivering domestic hot, cold and heated filtered water.

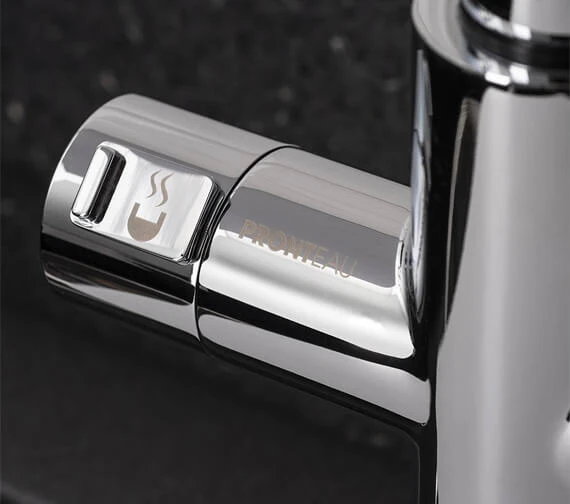

• Slide and twist safety lock hot handle.
• Contemporary slimline aesthetic.
• Insulated 180° Swivel spout for maximum flexibility.
• Scale inhibiting filter cartridge included.
• Child Lock.
• Anti-scald safety tap.
• Dry burn protection sensor.
• Overall height: 415mm.
• Base to spout height: 286mm.
• Centre of the inlet to centre of outlet: 216mm.
• Base width: 48mm.
• Recommended hole diameter: Ø35mm.
• Max. surface installation depth: 50mm.
• 55mm from the centre of tap hole to wall/backsplash behind the wall (Single lever handle rotates backwards 45°).
• Operation: 1 x 1/2 inch Ceramic disc quarter turn, 1 x Single lever 25mm.
• Suitable for high water pressure systems.
• Requires a minimum water pressure of 0.8 bar (hot only); 1.5 bar (cold only) to operate properly.

• Recommended / Maximum (domestic) hot water temperature: 46°C / 70°C.
• Part G: Mixed flow rate at 3 bar: 9.10 (litres/min).
• Product flow characteristics: (H&C/Boiling) dual flow.
• Hot and Cold inlets: Flexible hose connections supplied.
• Non return valve(s): Yes, integral to cold inlet flexi hose only.

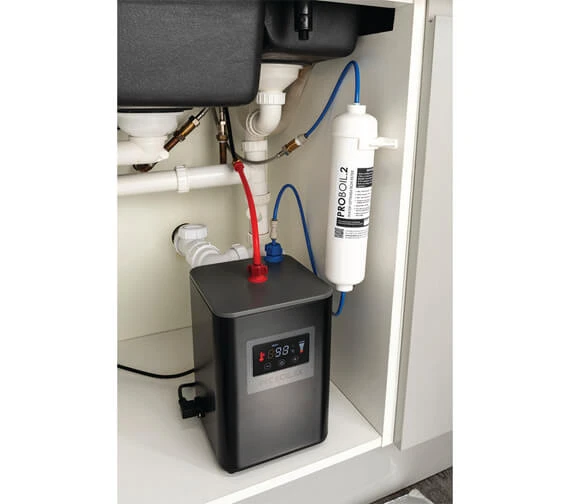

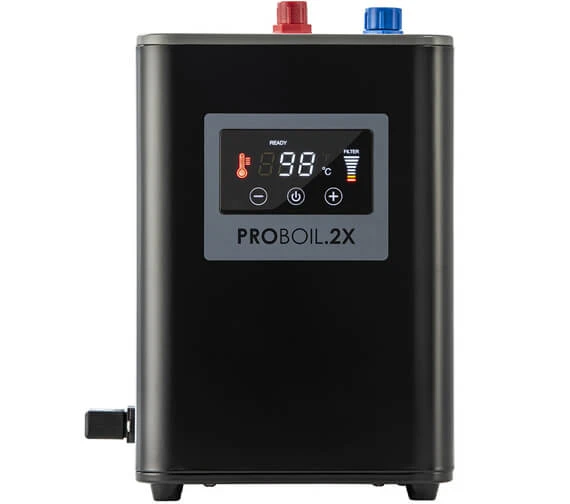

• Features Of PROBOIL.2X Boiler:.
• Digital touch control boiler display.

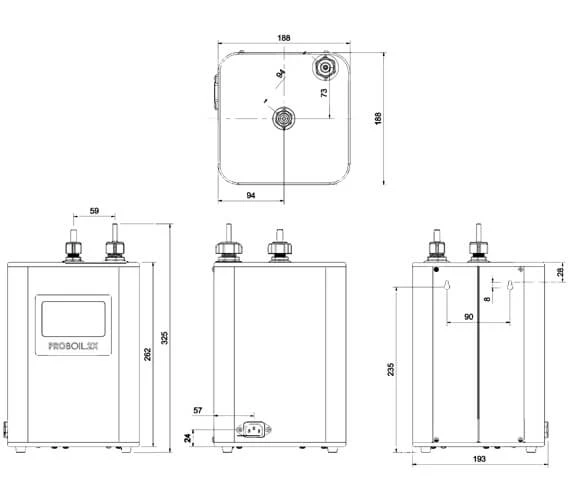

• Size: 188mm x 188mm x 325mm [Width x Depth x Height].
• Controllable tank temperature range from 75°C (holiday/eco mode) to 85,90,95,96, 97, 98°C using the.
• touch screen controls.
• 2.1 Litre capacity tank, approx 7 minutes reboil after use.
• On-screen filter life/replacement indicator.
• Intelligent self-diagnostic control.
• No external drain connection needed for a simplified and more flexible installation.
• Flow is limited to 2 litres/min to limit splashing and ensure a smooth flow.
• Tool free, hand-tight connectors to speed up installation, maintenance and descaling.
• Features Of PROBOIL.2 filter:.
• Filtered 98°C drinking water, engineered specifically for hot water applications.
• Included with every PROBOIL.2X system.
• Recommended replacement interval 6 months.
• Chlorine taste and odour reduction.
• Scale reduction for better drinks and tank protection.
