Abode Prothia 3 In 1 Quad Spout Slimline Monobloc Boiling Kitchen Sink Mixer Tap displays high standards of design, features, and functionality, as well as superior levels of durability. This glistening product will hold and dispense your water with style-domestic hot, cold and heated filtered water.
The tubular brassware comes in five gorgeous finishes, of which chrome and brushed nickel are the most popular among our users. With water efficiency, safe and anti-scald features, this boiling water tap is a must-have for every kitchen. If you are looking for the best 3-in-1 kitchen tap that looks great and offers safe and precise functionality, then this unit is for you. It is screaming hot, literally!
- ✔WRAS approved
- ✔Instantly boiled hot water
- ✔Supplied with 2.1L tank & filter
- ✔5 years of guarantee for tap and 2 years for boiler from the manufacturer

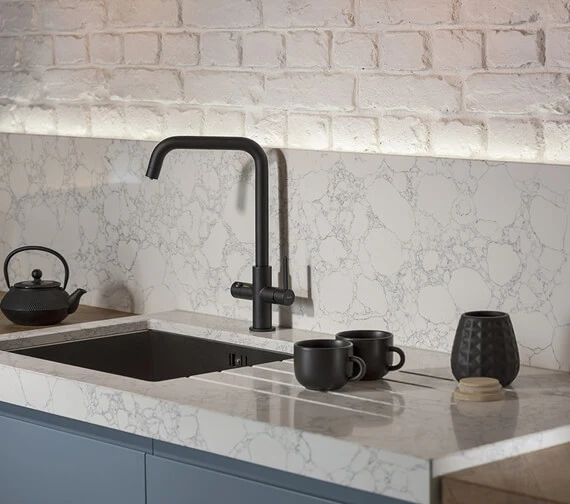

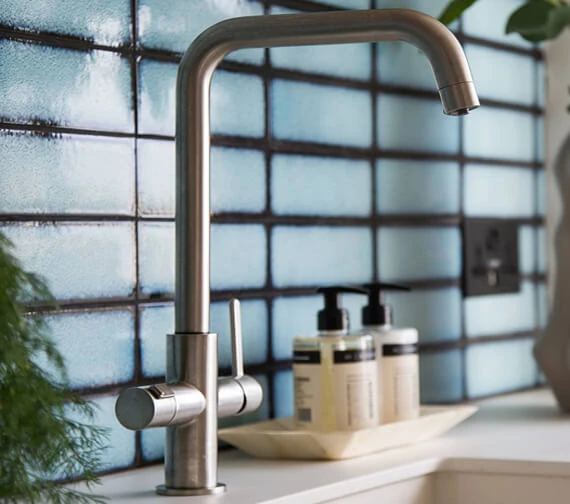

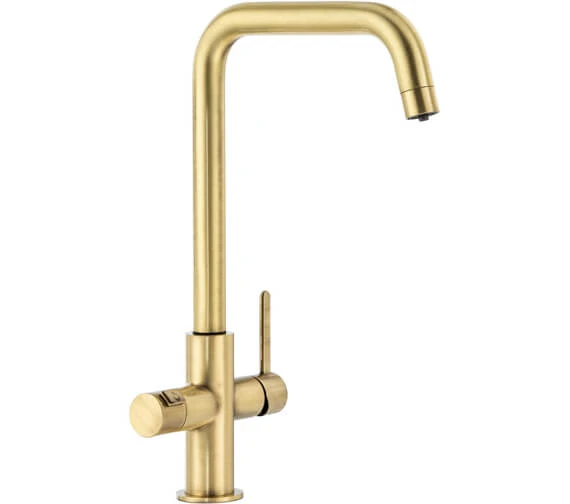

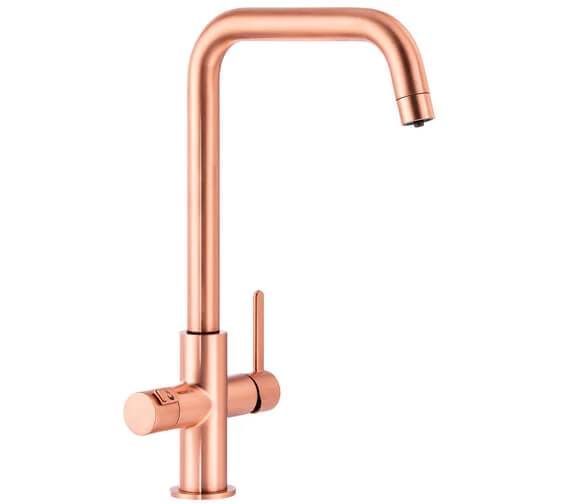

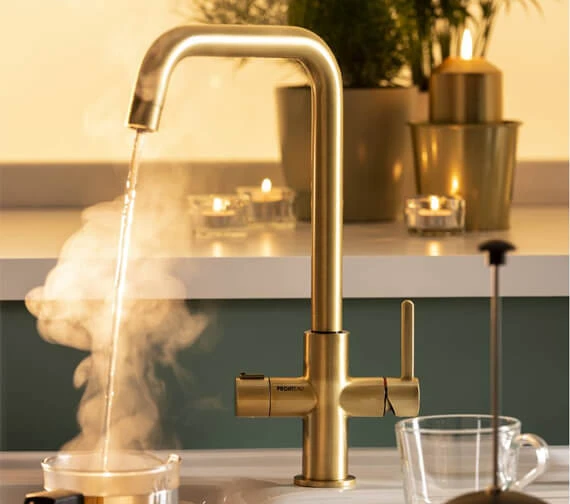

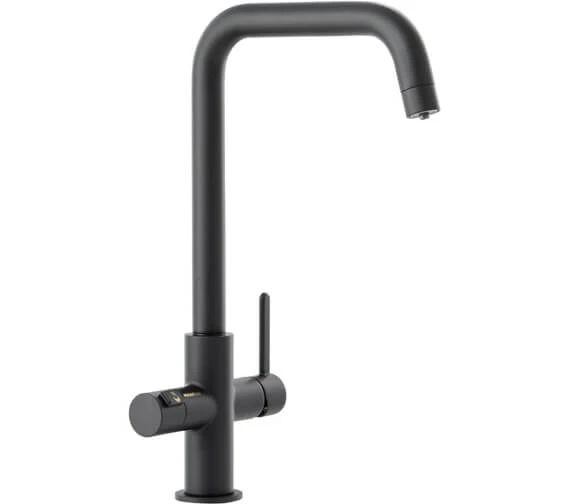

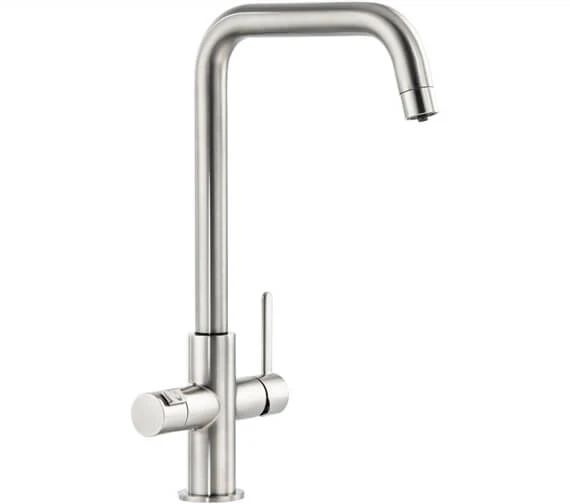

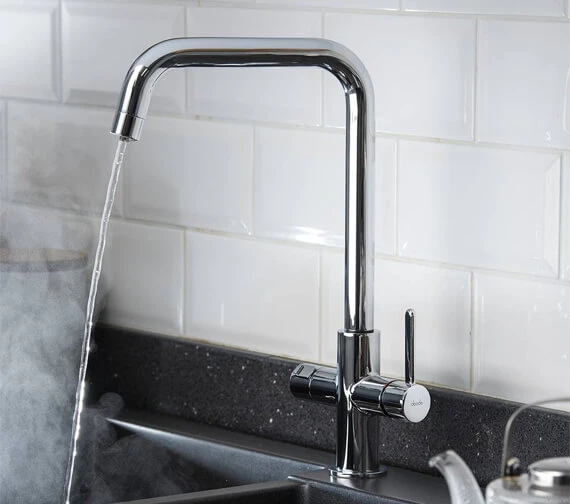

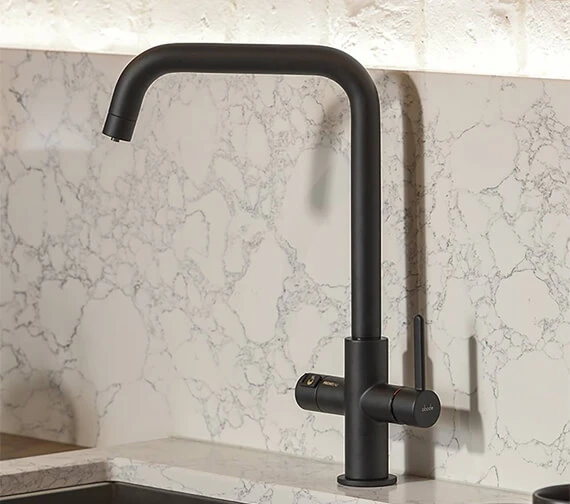

- Available in 5 finishes: Chrome, Brushed Nickel, Matt Black, Brushed Brass, Urban Copper.
- Download the Installation Instructions PDF from the Additional Info section.

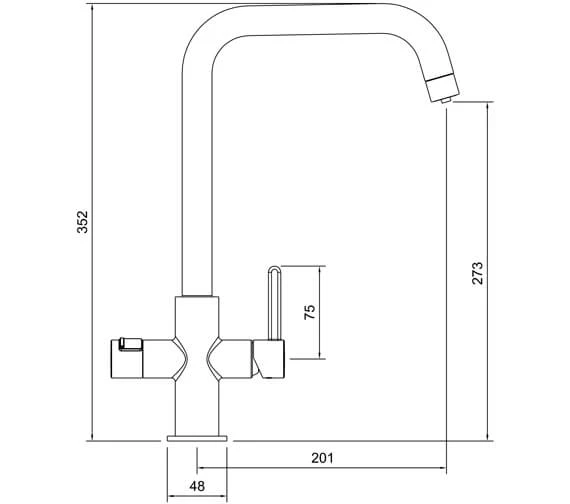

- Refer to the technical diagram for complete technical dimensions.
- Features Of Tap:.
- Stylish 3 way mixer tap delivering domestic hot, cold and heated filtered water.

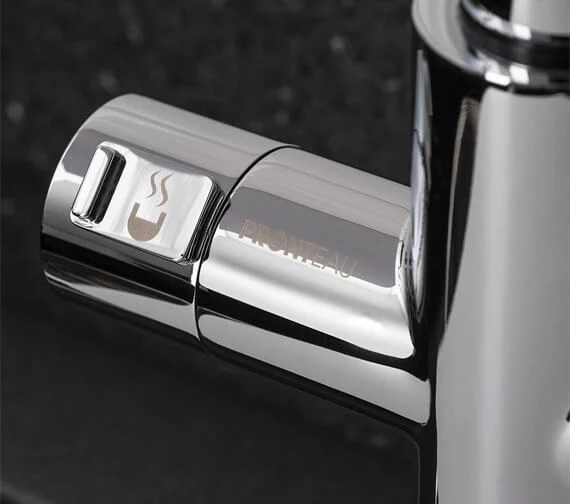

- Slide and twist the safety lock hot handle.
- Contemporary slimline aesthetic.
- Insulated 180° Swivel spout for maximum flexibility.
- Scale inhibiting filter cartridge included.
- Overall height: 352mm.
- Base to spout height: 273mm.
- Centre of the inlet to centre of outlet: 201mm.
- Base width: 48mm.
- Recommended hole diameter: Ø35mm.
- Max. surface installation depth: 50mm.
- 55mm from centre of the tap hole to wall/backsplash behind the wall (Single lever handle rotates backwards 45°).
- Child Lock.
- Anti-scald safety tap.
- Dry burn protection sensor.
- Operation: 1 x 1/2 inch Ceramic disc quarter turn, 1 x Single lever 25mm.
- Suitable for high water pressure systems..
- Requires a minimum water pressure of 0.8 bar (hot only); 1.5 bar (cold only) to operate properly.
- Recommended / Maximum (domestic) hot water temperature: 46°C / 70°C.
- Part G: Mixed flow rate at 3 bar: 9.10 (litres/min).
- Product flow characteristics: (H&C/Boiling) dual flow.
- Hot and Cold inlets: Flexible hose connections supplied.
- A non-return valve(s): Yes, integral to cold inlet flexi hose only.

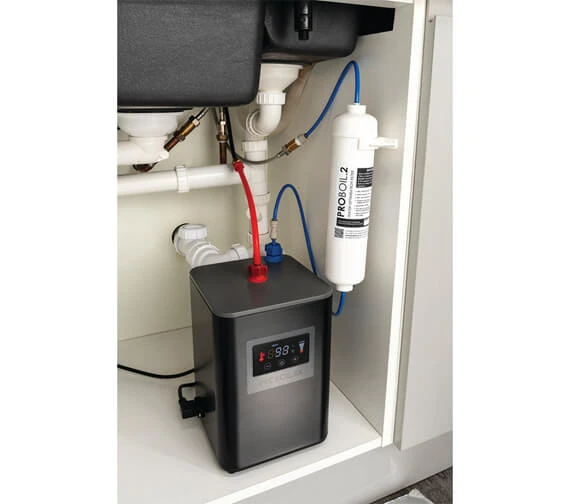

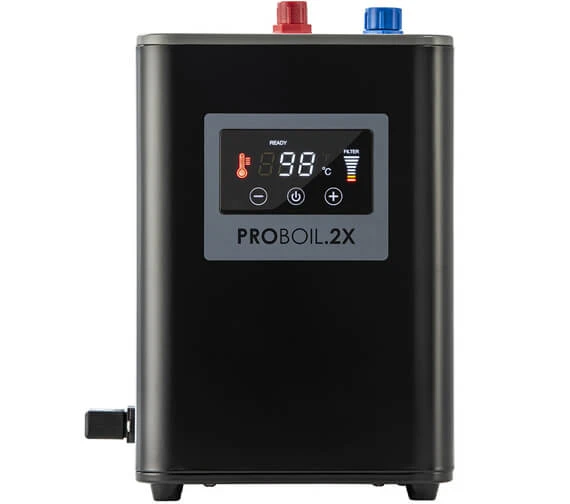

- Features Of PROBOIL.2X Boiler:.
- Digital touch control boiler display.

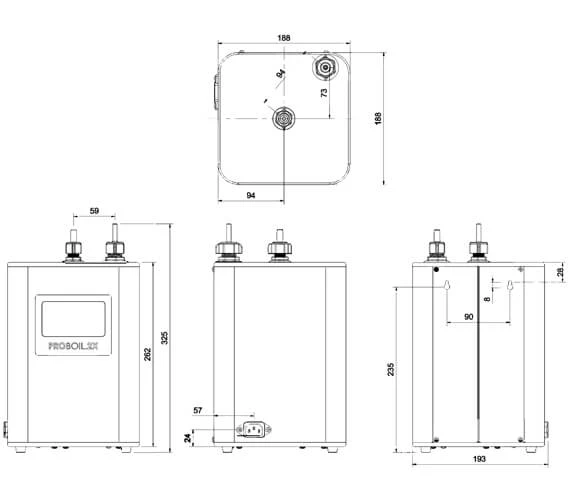

- Size: 188mm x 188mm x 325mm [Width x Depth x Height].
- Controllable tank temperature range from 75°C (holiday/eco mode) to 85,90,95,96, 97, 98°C using the.
- touch screen controls.
- 2.1 Litre capacity tank, approx 7 minutes reboil after use.
- On-screen filter life/replacement indicator.
- Intelligent self-diagnostic control.
- No external drain connection needed for a simplified and more flexible installation.
- Flow is limited to 2 litres/min to limit splashing and ensure a smooth flow.
- Tool-free, hand-tight connectors to speed up installation, maintenance and descaling.
- Features Of PROBOIL.2 filter:.
- Filtered 98°C drinking water, engineered specifically for hot water applications.
- Included with every PROBOIL.2X system.
- Recommended replacement interval 6 months.
- Chlorine taste and odour reduction.
- Scale reduction for better drinks and tank protection.
