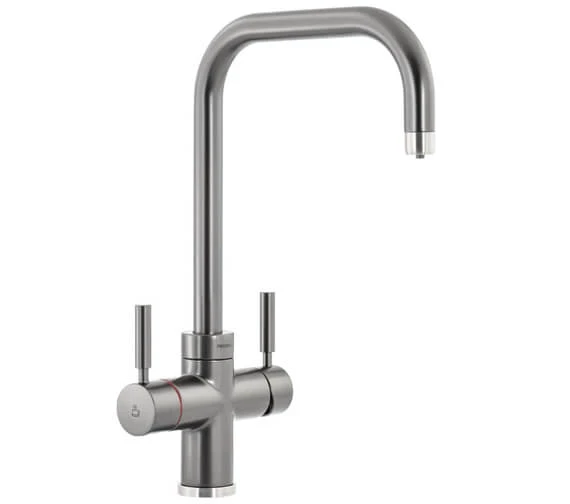

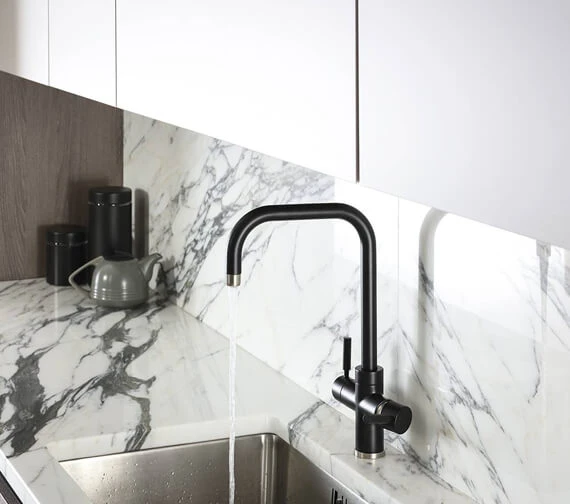

Abode Prostyle 3 In 1 Quad Spout Monobloc Kitchen Sink Mixer Tap

Abode Prostyle 3 In 1 Quad Spout Monobloc Kitchen Sink Mixer Tap is as functional as it is beautiful. One look at this Sink Mixer Tap, and you will know what we are talking about. This deck-mounted installation has been designed in a contemporary style, with a flawless chrome finish enhancing its visual appeal.

This brassware is designed keeping in mind the requirements of a busy, modern household. It is just as fantastic in a commercial kitchen. It is made using brass and delivers domestic hot, cold and heated 98° (variable selectable) filtered water. The unit has a distinctive anti-scald system that highlights the importance of safety. The special thing about this brassware is the immense convenience it brings into your kitchen.

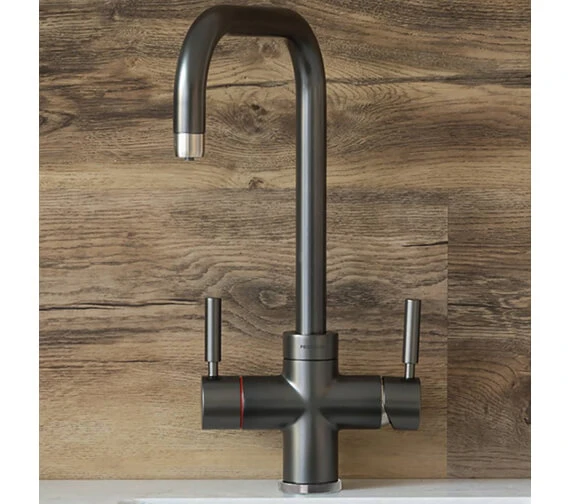

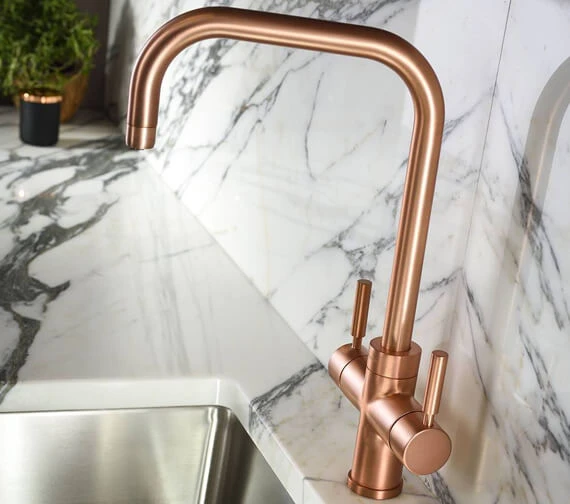

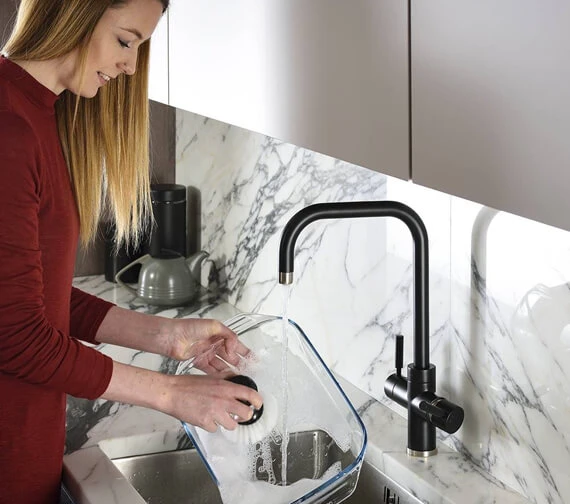

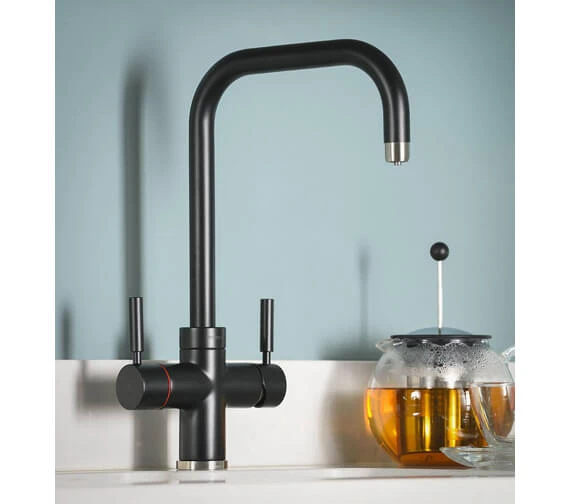

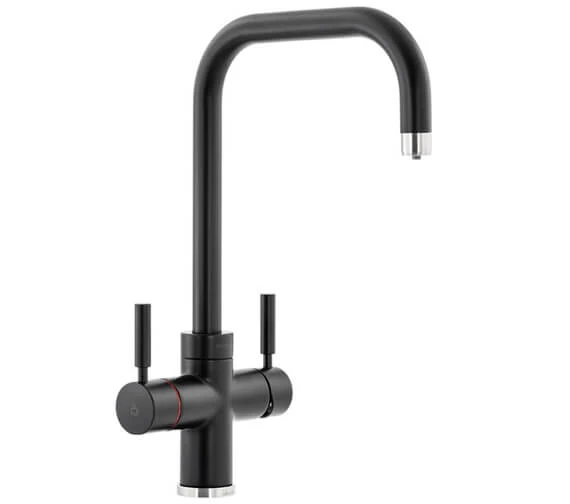

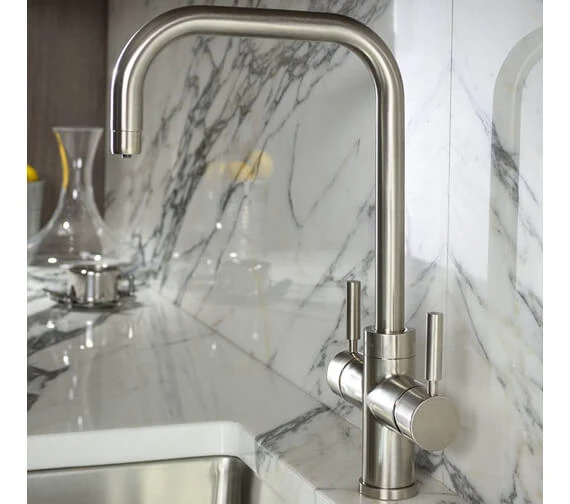

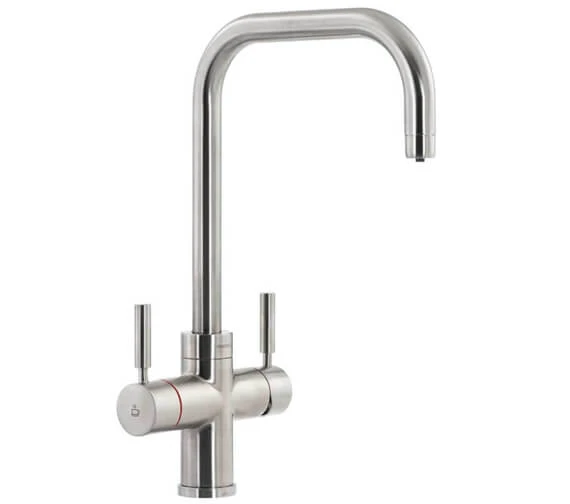

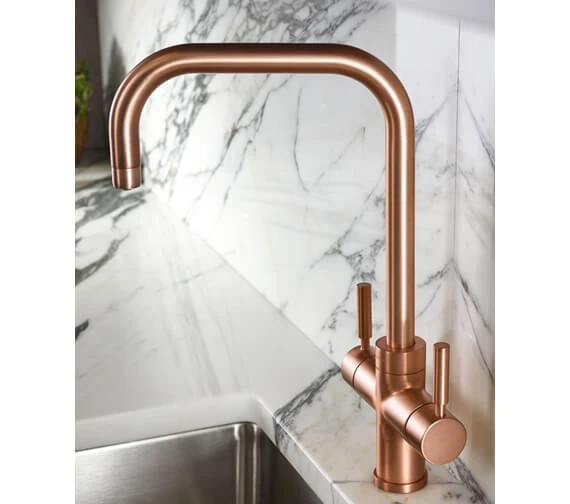

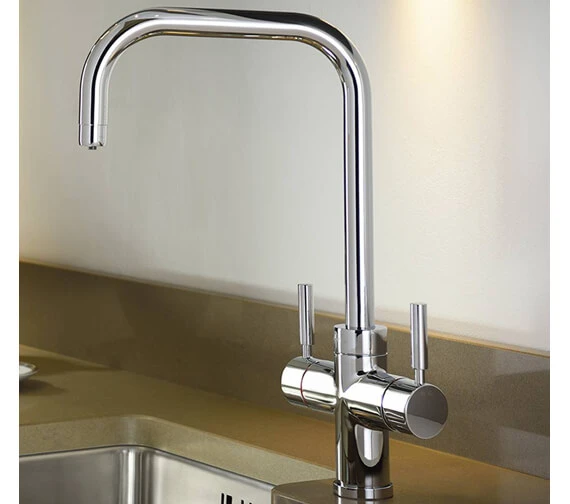

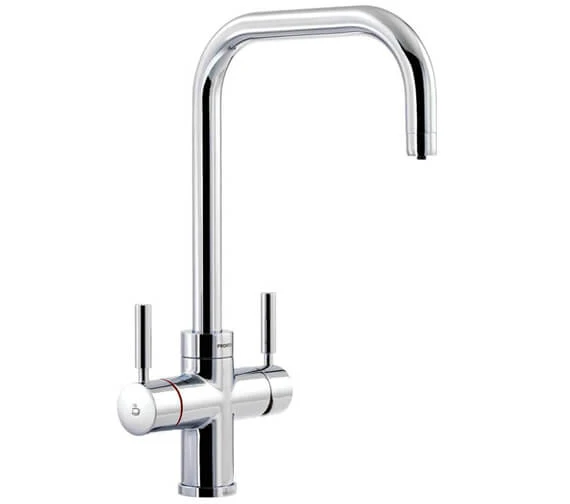

• Available in 5 finishes: Chrome, Brushed Nickel, Graphite, Matt Black, Urban Copper.
• Download the Installation Instructions PDF from the Additional Info section.
• Refer to the technical diagram for complete technical dimensions.
• Features Of Tap:.

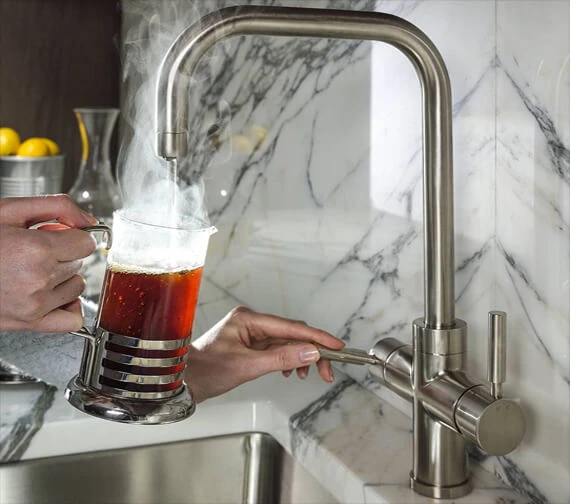

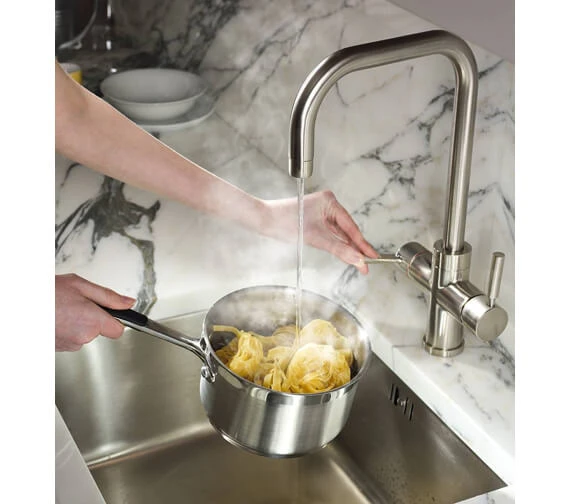

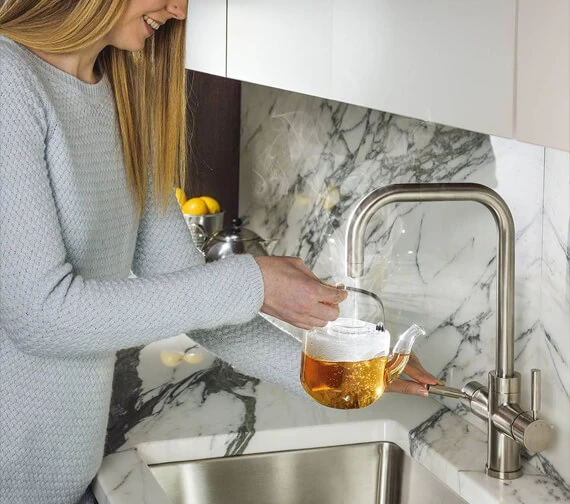

• Stylish 3-way mixer tap delivering domestic hot, cold and heated 98° (variable selectable) filtered water.
• The dual-stage handle mechanism on the hot handle has been designed with safety and ease of use in mind.
• 360-degree rotation of spout allows for easy use and accessibility.
• Features an energy saving.
• Scale inhibiting filter cartridge included.
• Overall height: 390mm.
• Base to spout height: 287mm.
• Centre of the inlet to centre of outlet: 222mm.
• Base width: 48mm.
• Recommended hole diameter: Ø35mm.
• Max. surface installation depth: 50mm.
• Cold start valve allows installation close to backsplashes (handles do not rotate backwards).
• Child Lock.
• Anti-scald safety tap.
• Dry burn protection sensor.
• Operation: 1 x 1/2 inch Ceramic disc quarter turn, 1 x Single lever 35mm.
• Suitable for high water pressure systems.
• Requires a minimum water pressure of 0.75 bar (hot only); 1.5 bar (cold only) to operate properly.

• Recommended / Maximum (domestic) hot water temperature: 46°C / 70°C.
• Part G – Mixed flow rate at 3 bar: 12.02 (litres/min).
• Product flow characteristics: (H&C/Boiling) dual flow.
• Hot and Cold inlets: Flexible hose connections supplied.
• A non-return valve(s): Yes, integral to cold inlet flexi hose only.
• Features Of PROBOIL.2X Boiler:.
• Digital touch control boiler display.
• Size: 188mm x 188mm x 325mm [Width x Depth x Height].
• Controllable tank temperature range from 75°C (holiday/eco mode) to 85,90,95,96, 97, 98°C using the.
• touch screen controls.
• 2.1 Litre capacity tank, approx 7 minutes reboil after use.
• On-screen filter life/replacement indicator.
• Intelligent self-diagnostic control.
• No external drain connection is needed for a simplified and more flexible installation.
• Flow is limited to 2 litres/min to limit splashing and ensure a smooth flow.
• Tool-free, hand-tight connectors to speed up installation, maintenance and descaling.
• Features Of PROBOIL.2 filter:.
• Filtered 98°C drinking water, engineered specifically for hot water applications.
• Included with every PROBOIL.2X system.
• Recommended replacement interval 6 months.
• Chlorine taste and odour reduction.
• Scale reduction for better drinks and tank protection.
