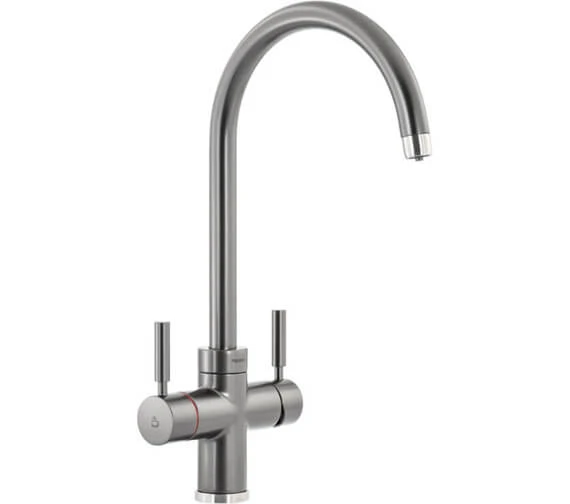

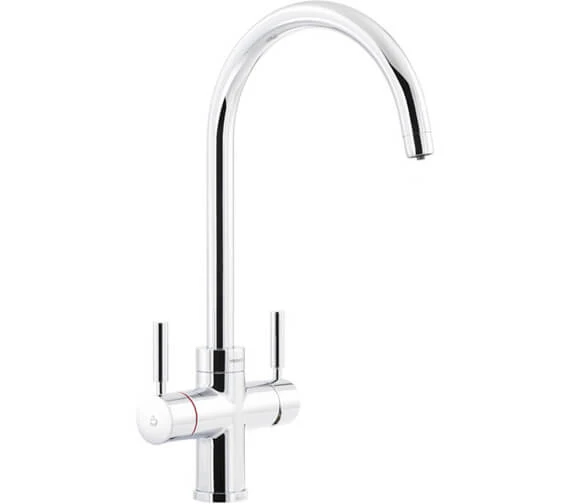

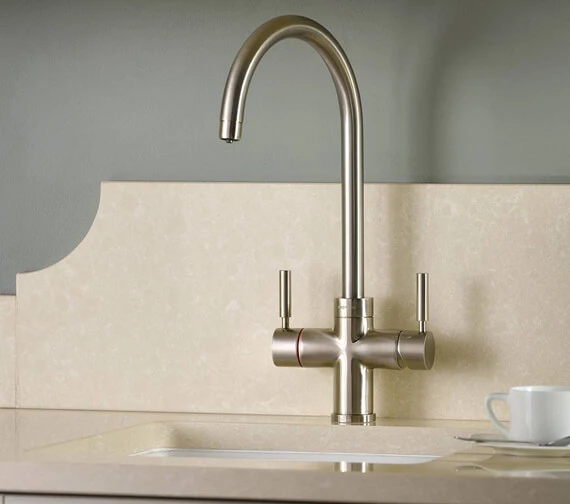

Abode Prostream 3 In 1 Swan Spout Monobloc Kitchen Sink Mixer Tap

Abode Prostream 3 In 1 Swan Spout Monobloc Kitchen Sink Mixer Tap is constructed using remarkably strong brass material in a sleek minimal design. It has everything from a two-stage hot handle mechanism for safety, an energy-saving cold start and a 360-degree swivel spout for convenience in the kitchen. It allows for accurate flow control in three ways, delivering domestic hot, cold and heated up to 98° filtered water.

Its safety mechanisms offer complete thermal protection that prevents scalding. The WRAS-approved tap is suitable for high-water pressure systems only. It is built with unique new-age technology, and if you are the kind of person who loves stylish, technically advanced gadgets, then you have one here with you.

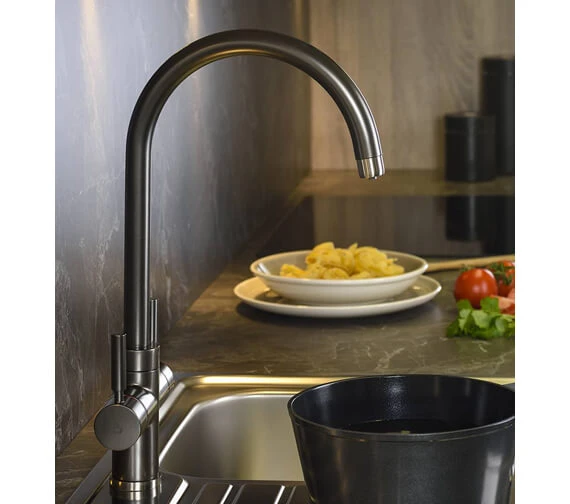

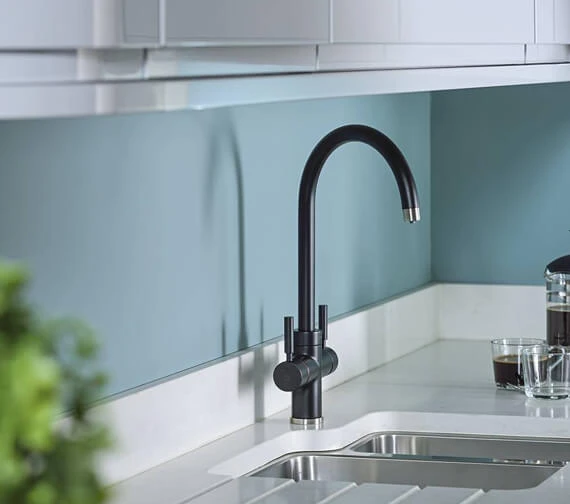

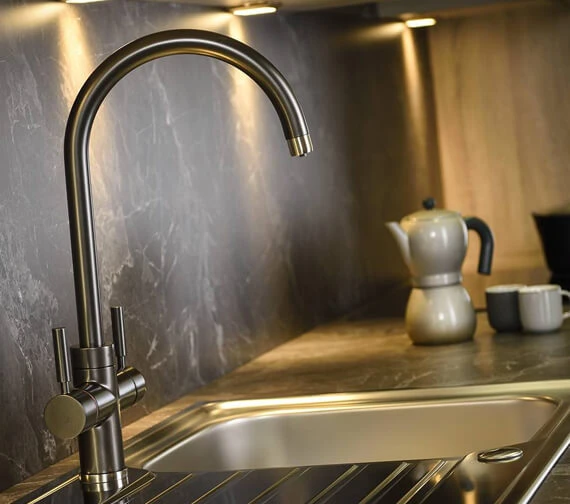

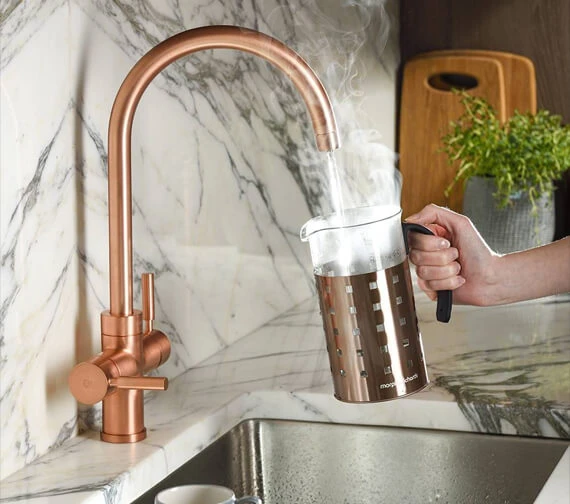

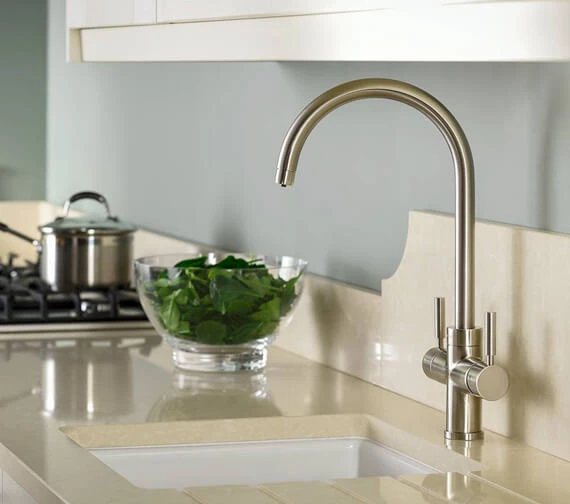

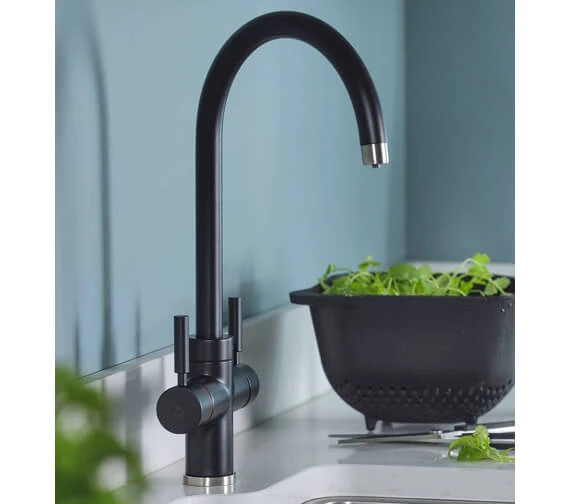

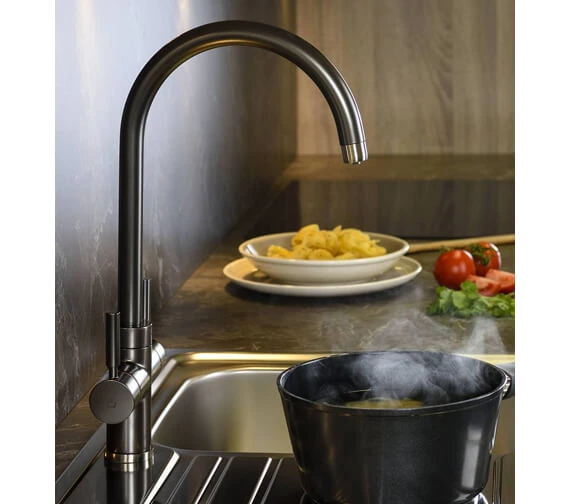

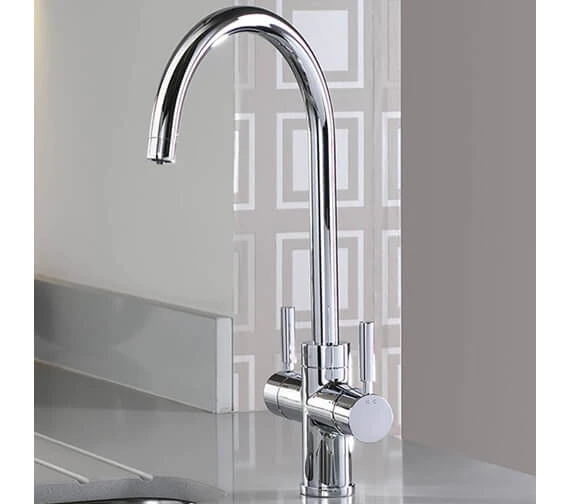

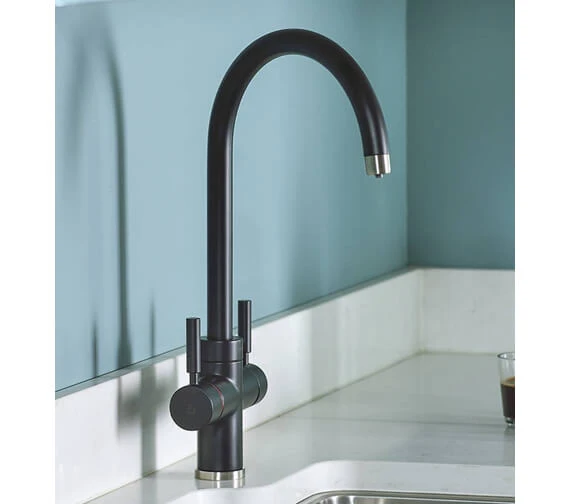

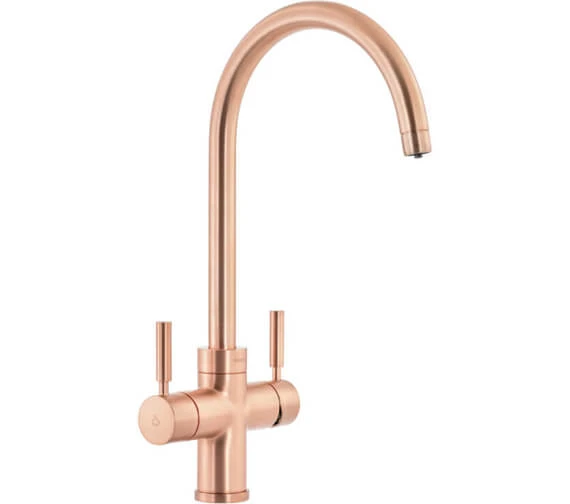

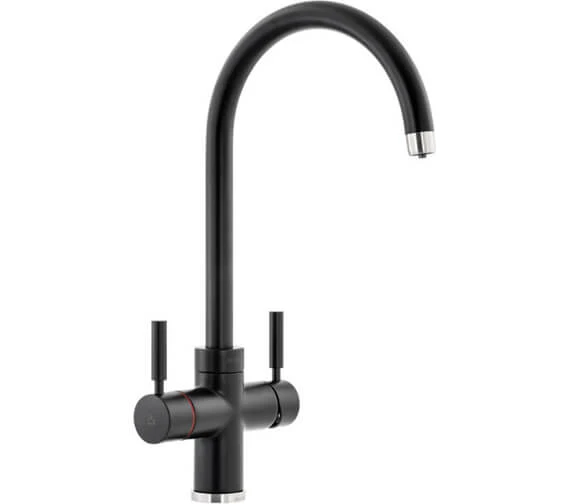

• Available in 5 finishes: Chrome, Brushed Nickel, Graphite, Matt Black, Urban Copper.
• Download the Installation Instructions PDF from the Additional Info section.

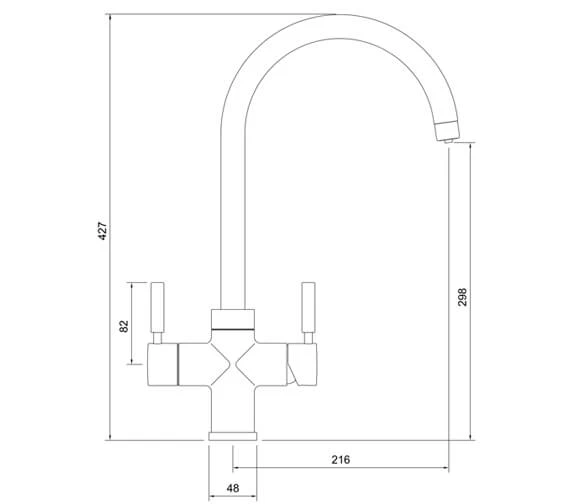

• Refer to the technical diagram for complete technical dimensions.
• Features Of Tap:.
• Stylish 3-way mixer tap delivering domestic hot, cold and heated 98° (variable selectable) filtered water.
• The dual-stage handle mechanism on the hot handle has been designed with safety and ease of use in mind.
• 360-degree rotation of spout allows for easy use and accessibility.
• Features an energy-saving cold start valve as standard.
• Scale inhibiting filter cartridge included.
• Overall height: 427mm.
• Base to spout height: 298mm.
• Centre of the inlet to centre of outlet: 216mm.
• Base width: 48mm.
• Recommended hole diameter: Ø35mm.
• Max. surface installation depth: 50mm.
• Cold start valve allows installation close to backsplashes (handles do not rotate backwards).
• Child Lock.
• Anti-scald safety tap.
• Dry burn protection sensor.
• Operation: 1 x 1/2 inch Ceramic disc quarter turn, 1 x Single lever 35mm.
• Suitable for high water pressure systems.
• Requires a minimum water pressure of 0.75 bar (hot only); 1.5 bar (cold only) to operate properly.

• Recommended / Maximum (domestic) hot water temperature: 46°C / 70°C.
• Part G – Mixed flow rate at 3 bar: 12.02 (litres/min).
• Product flow characteristics: (H&C/Boiling) dual flow.
• Hot and Cold inlets: Flexible hose connections supplied.
• Non return valve(s): Yes, integral to cold inlet flexi hose only.
• Features Of PROBOIL.2X Boiler:.
• Digital touch control boiler display.
• Size: 188mm x 188mm x 325mm [Width x Depth x Height].
• Controllable tank temperature range from 75°C (holiday/eco mode) to 85,90,95,96, 97, 98°C using the.
• touch screen controls.
• 2.1 Litre capacity tank, approx 7 minutes reboil after use.
• On-screen filter life/replacement indicator.
• Intelligent self-diagnostic control.
• No external drain connection is needed for a simplified and more flexible installation.
• Flow is limited to 2 litres/min to limit splashing and ensure a smooth flow.
• Tool-free, hand-tight connectors to speed up installation, maintenance and descaling.
• Features Of PROBOIL.2 filter:.
• Filtered 98°C drinking water, engineered specifically for hot water applications.
• Included with every PROBOIL.2X system.
• Recommended replacement interval 6 months.
• Chlorine taste and odour reduction.
• Scale reduction for better drinks and tank protection.
