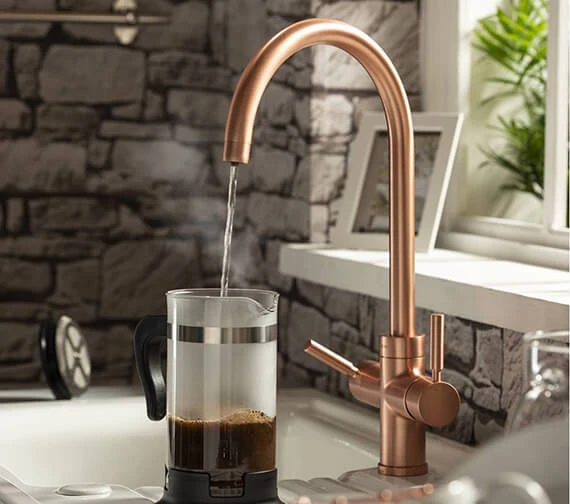

Abode Propure 4 In 1 Swan Spout Monobloc Kitchen Sink Mixer Tap

The Abode Propure 4 In 1 Monobloc Kitchen Sink Mixer Tap gives you water mixed in four different ways to make it easy for you in the kitchen. This brassware comes with safeguards against accidental activation of boiling water as well as other anti-scald defences. The impressive swivel range of 360° ensures that the tap has a greater reach.

The boiler comes with a digital touch control display, replacement indicator and self-diagnostic control. WRAS and KIWA approved, it comes in a host of finishes so that you can match it with your current kitchen decor. This unit is engineered with high-quality metal construction, and the metal fittings make it sturdy.

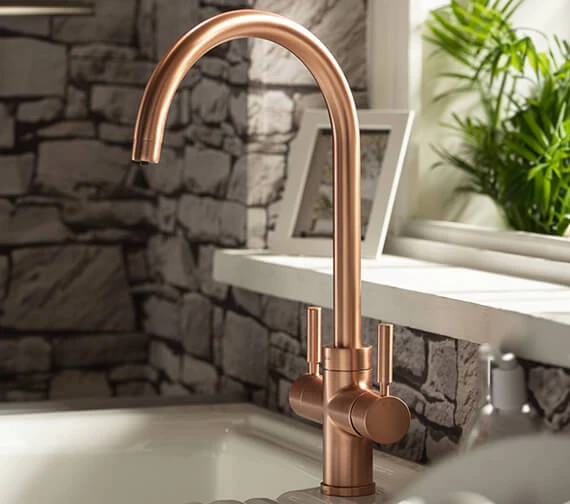

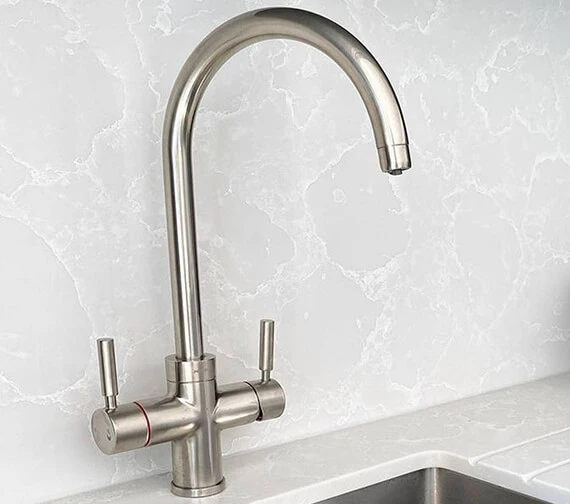

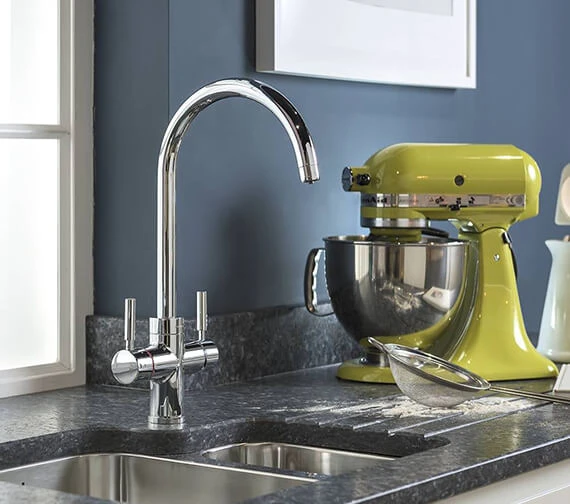

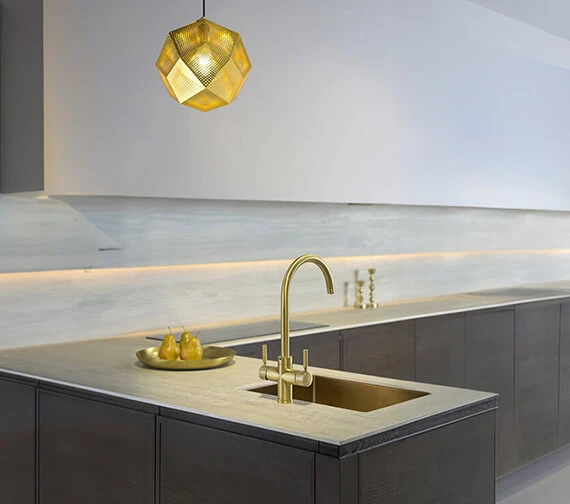

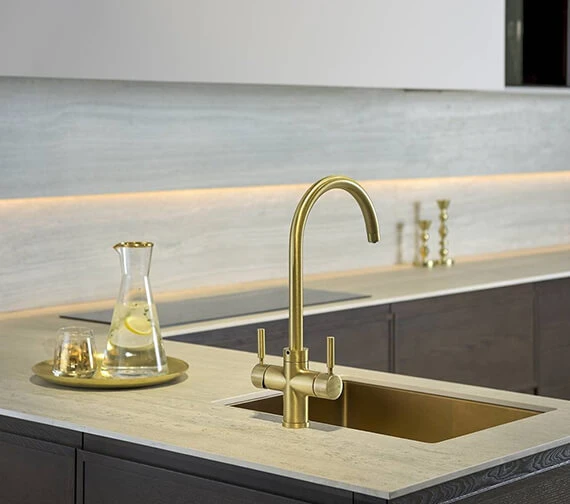

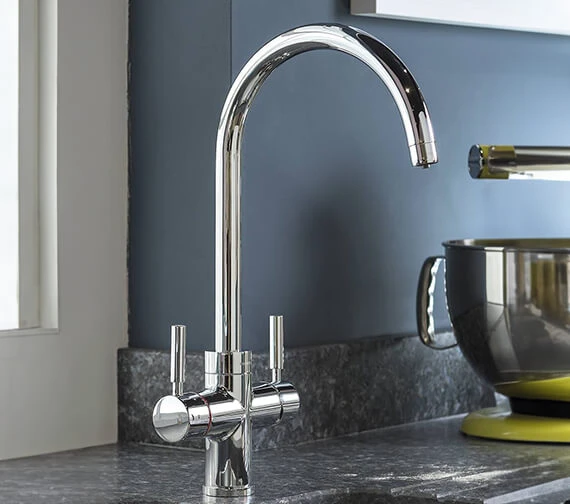

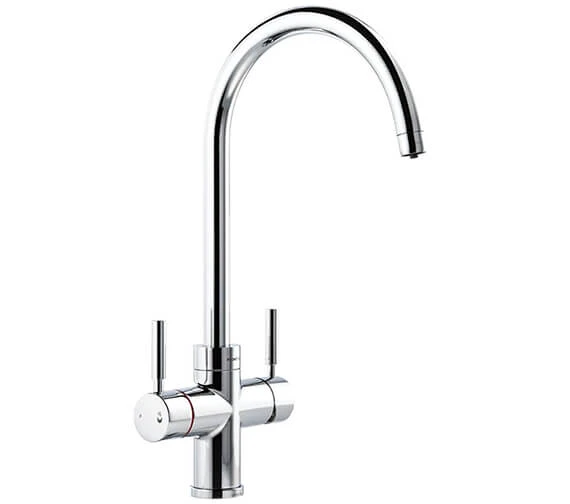

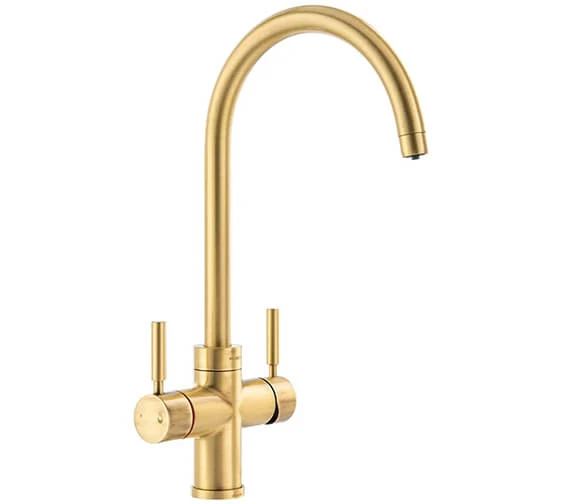

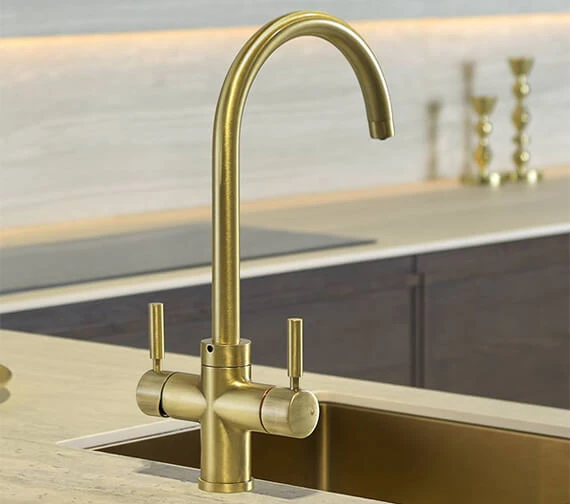

• Available in 5 finishes: Chrome, Brushed Nickel, Matt Black, Brushed Brass and Urban Copper.
• Download the Installation Instructions PDF from the Additional Info section.

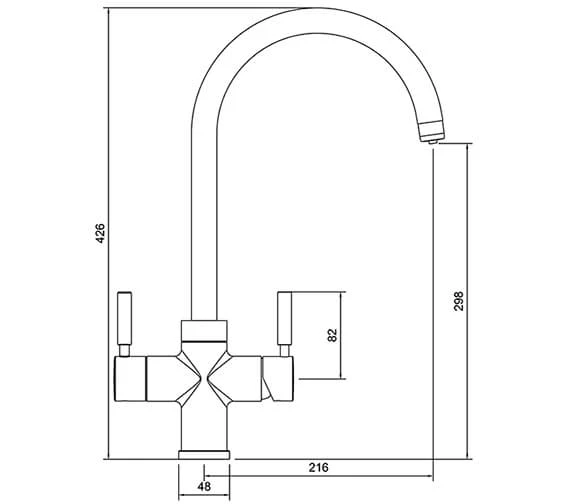

• Refer to the technical diagram for complete technical dimensions.
• Features Of Tap:.
• 4-in-1 tap delivering, domestic hot and cold, ambient (cold) filtered and 98°C (variable) filtered water.
• The dual-stage handle mechanism on the hot handle has been designed with safety and ease of use in mind.
• 360-degree rotation of spout allows for easy use and accessibility.
• Metal construction throughout.
• Scale inhibiting filter cartridge included.
• Overall height: 426mm.
• Base to spout height: 298mm.
• Centre of the inlet to centre of outlet: 216mm.
• Base width: 48mm.
• Recommended hole diameter: Ø35mm.
• Max. surface installation depth: 45mm.
• 60mm from the centre of the tap hole to the wall/backsplash behind the wall (Handles rotate backwards 45°).
• Operation: 1 x Single lever 35mm, 1 x two way ceramic diverter.
• Suitable for medium water pressure systems.
• Requires a minimum water pressure of 0.50 bar (hot only); 1.5 bar (cold only) to operate properly.
• Recommended / Maximum (domestic) hot water temperature: 46°C / 70°C.

• Part G – Mixed flow rate at 3 bar: 12.48 (litres/min).
• Product flow characteristics: (H&C&F/Boiling) dual flow.
• Hot and Cold inlets: Flexible hose connections supplied.
• Non return valve(s): Yes, integral to cold inlet flexi hose only.

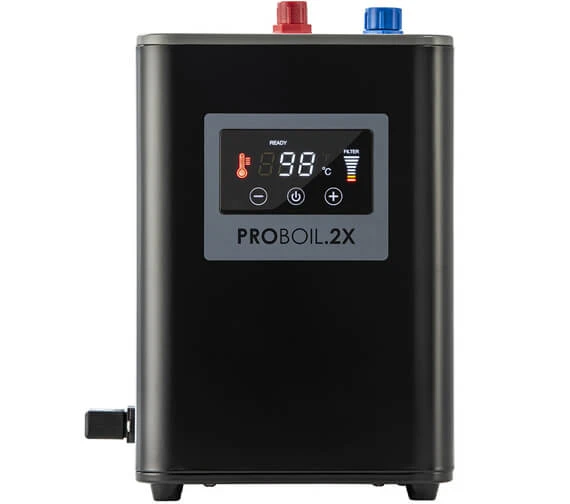

• Features Of PROBOIL.2X Boiler:.
• Digital touch control boiler display.

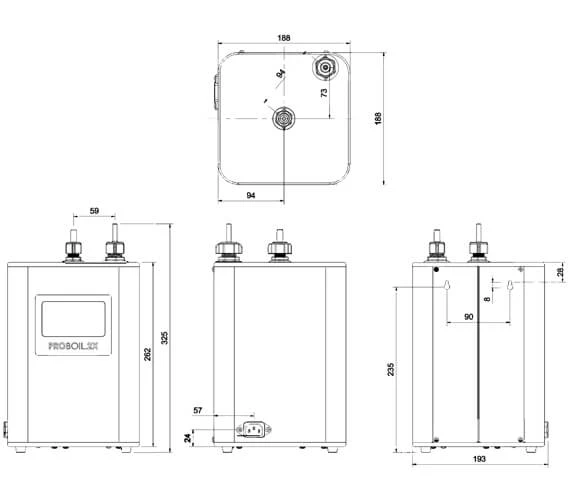

• Size: 188mm x 188mm x 325mm [Width x Depth x Height].
• Controllable tank temperature range from 75°C (holiday/eco mode) to 85,90,95,96, 97, and 98°C using the touch screen controls.
• 2.1 Litre capacity tank, approx 7 minutes reboil after use.
• On-screen filter life/replacement indicator.
• Intelligent self-diagnostic control.

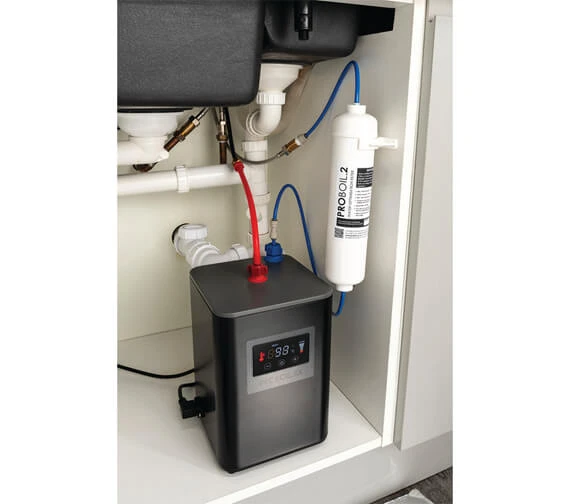

• No external drain connection is needed for a simplified and more flexible installation.
• Flow is limited to 2 litres/min to limit splashing and ensure a smooth flow.
• Tool-free, hand-tight connectors to speed up installation, maintenance and descaling.
• Features Of PROBOIL.2 filter:.
• Filtered 98°C drinking water, engineered specifically for hot water applications.
• Included with every PROBOIL.2X system.
• Recommended replacement interval 6 months.
• Chlorine taste and odour reduction.
• Scale reduction for better drinks and tank protection.
