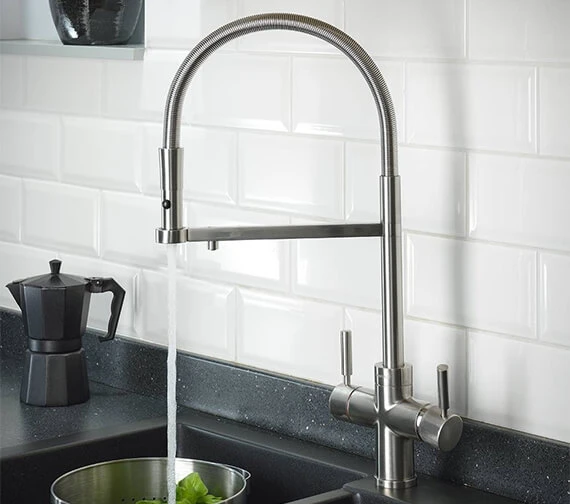

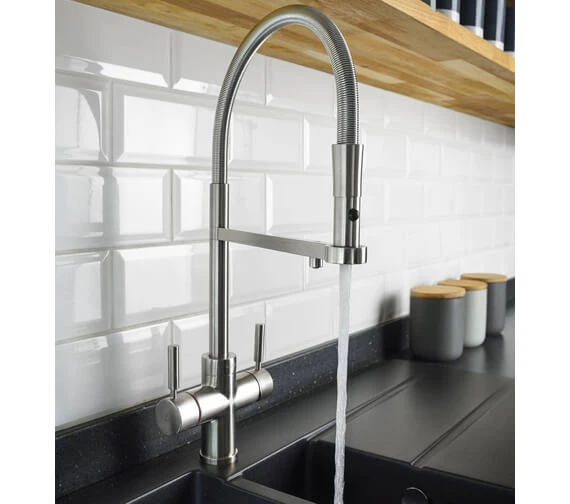

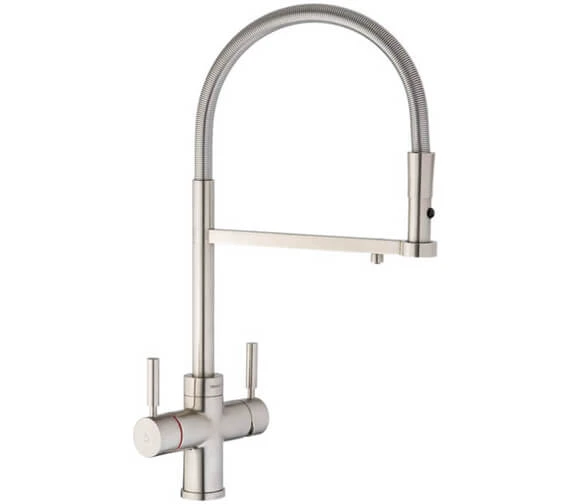

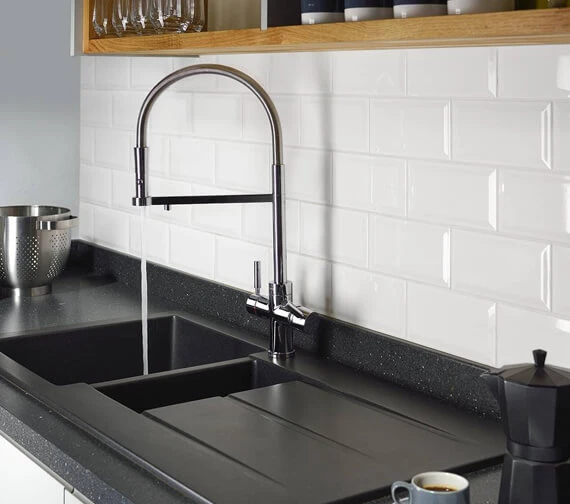

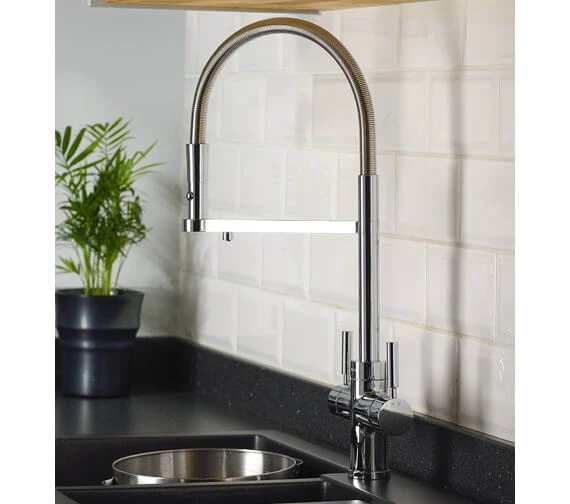

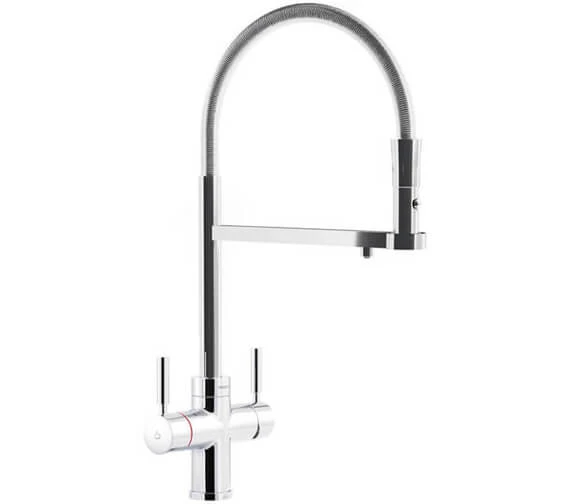

Abode Professional 3 In 1 Monobloc Kitchen Sink Mixer Tap

Your water is as clean as possible when it flows out of your kitchen tap when you install this Abode Professional Monobloc Kitchen Sink Mixer Tap. With its effortless performance, the 3-In-1 Kitchen Sink Mixer Tap is an ideal choice for any classically styled kitchen decor.

The mixer comes with three different settings so that you can set the one that is most comfortable for you and access it instantly. It offers a dual-stage handle mechanism on the hot handle that wont accidentally activate the boiling water setting. The boiling water wont causes any scalding through the tap as water is stored in the tank whose temperature is adjustable. This unit screams luxury at its best.

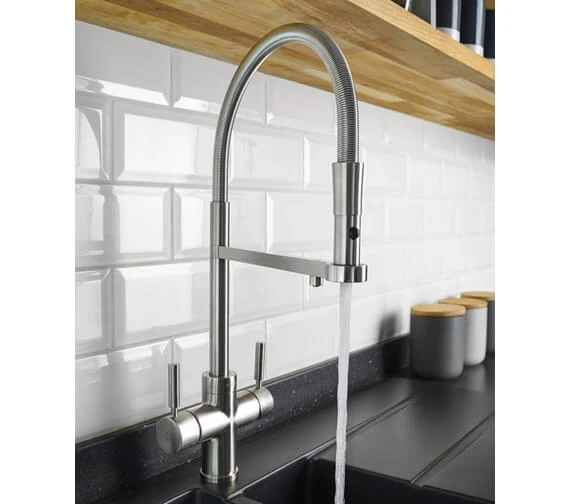

• Available in 2 finishes: Chrome, Brushed Nickel.
• Download the Installation Instructions PDF from the Additional Info section.

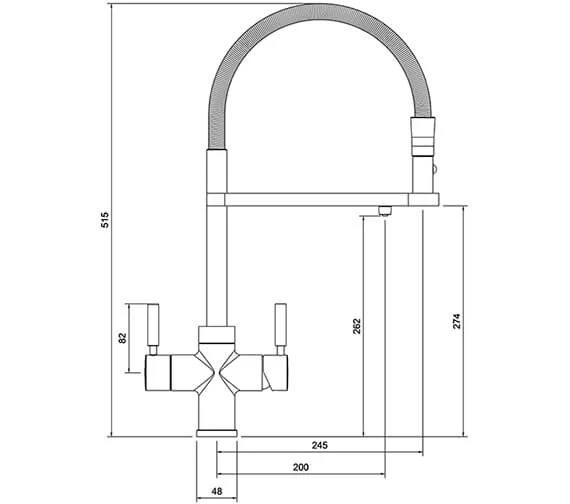

• Refer to the technical diagram for complete technical dimensions.
• Features Of Tap:.
• Stylish 3-way mixer tap delivering domestic hot, cold and heated 98° (variable selctable) filtered water.
• Pull around functionality with spray feature for domestic hot and cold.

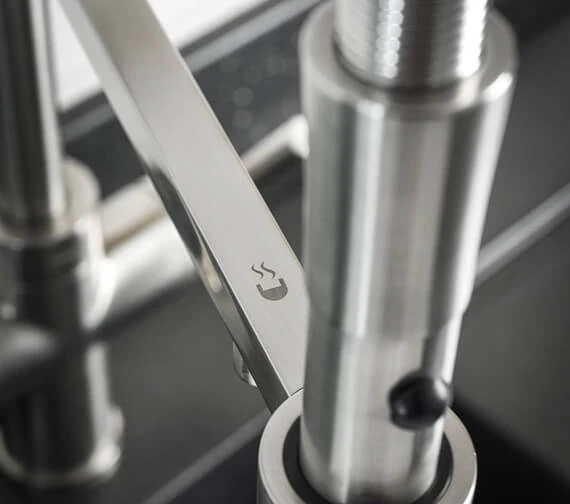

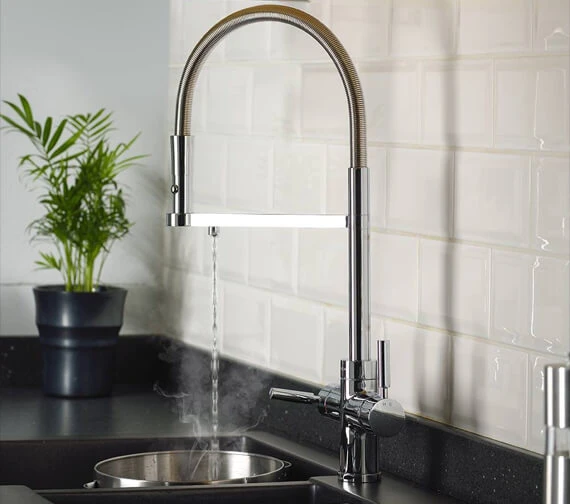

• Dedicated steaming hot water outlet on tap crossbar.
• The dual-stage handle mechanism on the hot handle has been designed with safety and ease of use in mind.
• Features an energy saving cold start valve as standard.
• 360° cool touch spout thanks to the centrally insulated steaming water channel.
• Overall height: 515mm.
• Base to spout height: 274mm.
• Centre of the inlet to centre of outlet: 245mm.
• Base width: 48mm.
• Recommended hole diameter: Ø35mm.
• Max. surface installation depth: 50mm.
• Cold start valve allows installation close to backsplashes (handles do not rotate backwards).
• Child Lock.
• Anti-scald safety tap.
• Dry burn protection sensor.
• Operation: 1 x 1/2 inch Ceramic disc quarter turn, 1 x Single lever 35mm.
• Suitable for high water pressure systems.

• Requires a minimum water pressure of 1.5 bar (hot only); 1.20 bar (cold only) to operate properly.
• Recommended / Maximum (domestic) hot water temperature: 46°C / 70°C.
• Part G – Mixed flow rate at 3 bar: 7.70 (litres/min).
• Product flow characteristics: (H&C/Boiling) dual flow.
• Hot and Cold inlets: Flexible hose connections supplied.
• A non-return valve(s): Yes, integral to cold inlet flexi hose only.

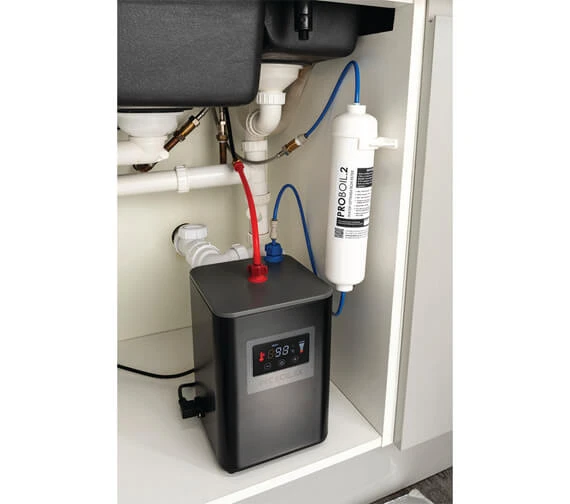

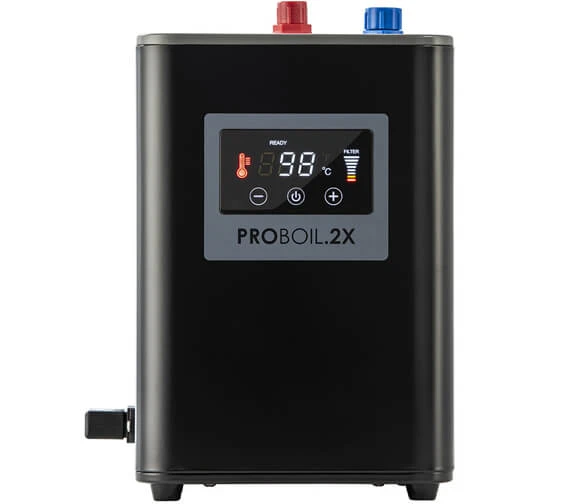

• Features Of PROBOIL.2X Boiler:.
• Digital touch control boiler display.

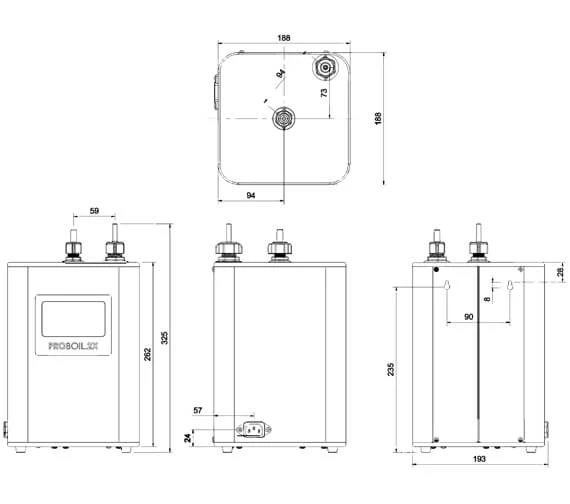

• Size: 188mm x 188mm x 325mm [Width x Depth x Height].
• Controllable tank temperature range from 75°C (holiday/eco mode) to 85,90,95,96, 97, 98°C using the touch screen controls.
• 2.1 Litre capacity tank, approx 7 minutes reboil after use.
• On-screen filter life/replacement indicator.
• Intelligent self-diagnostic control.
• No external drain connection is needed for a simplified and more flexible installation.
• Flow is limited to 2 litres/min to limit splashing and ensure a smooth flow.
• Tool-free, hand-tight connectors to speed up installation, maintenance and descaling.
• Features Of PROBOIL.2 filter:.
• Filtered 98°C drinking water, engineered specifically for hot water applications.
• Included with every PROBOIL.2X system.
• Recommended replacement interval 6 months.
• Chlorine taste and odour reduction.
• Scale reduction for better drinks and tank protection.
